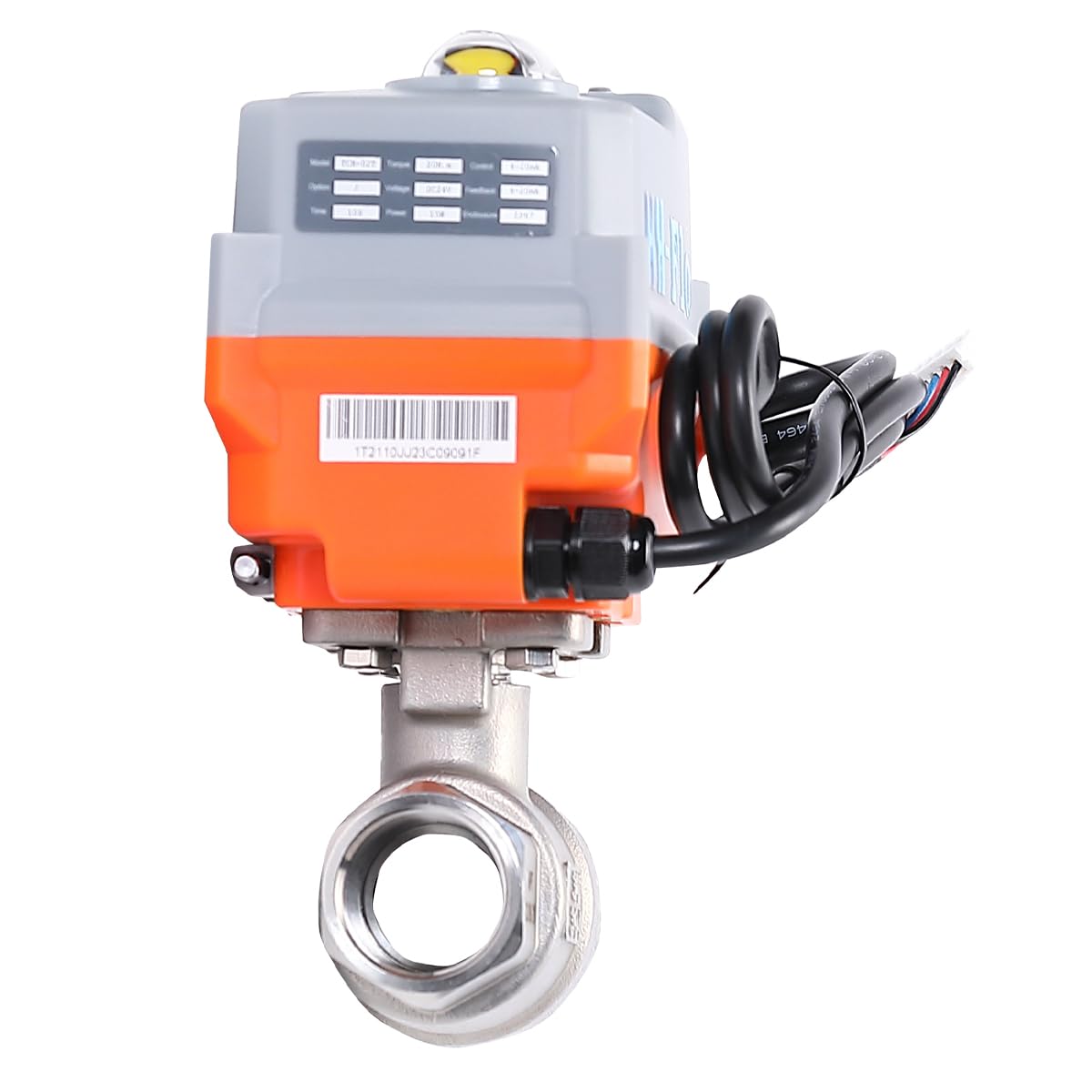

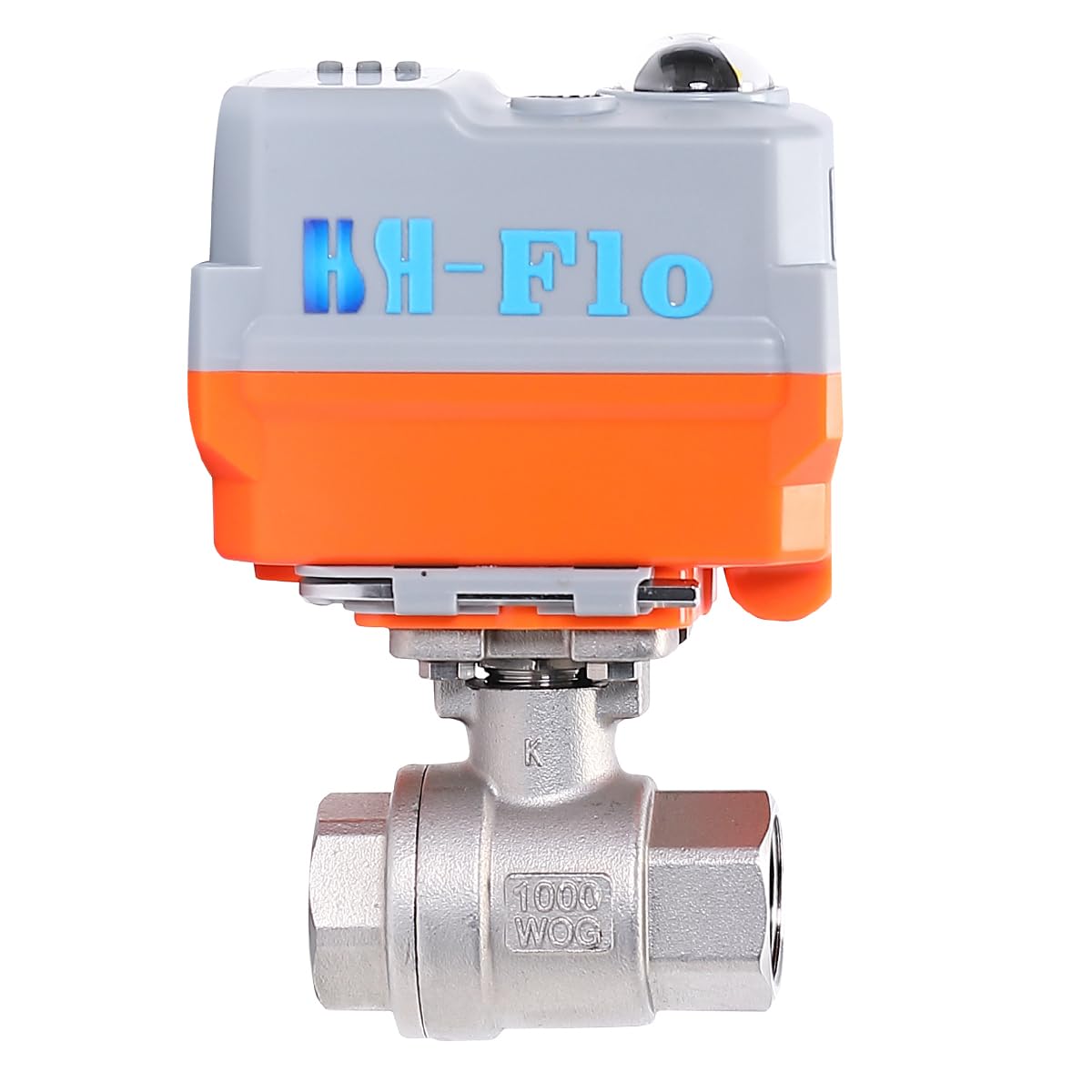

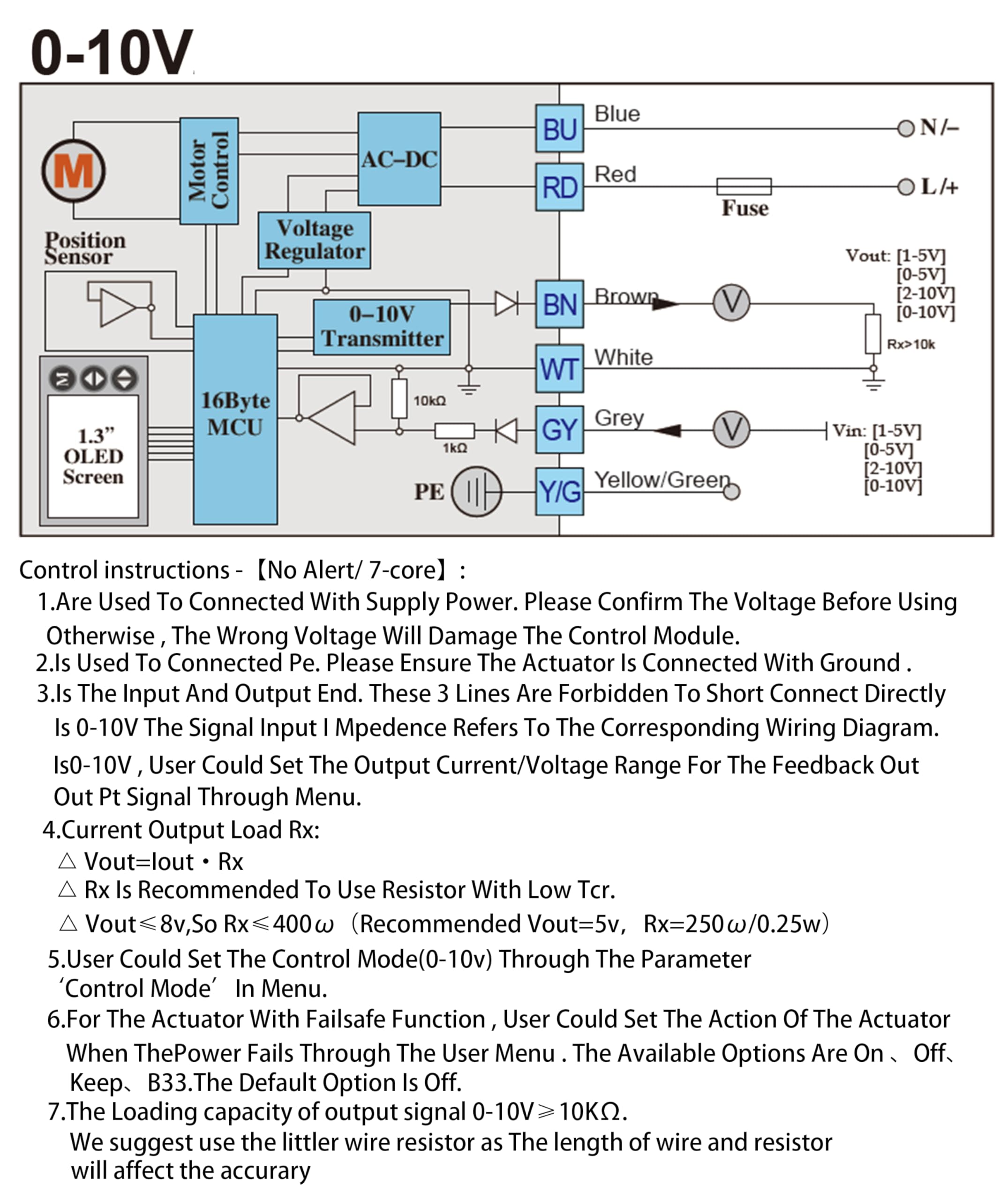

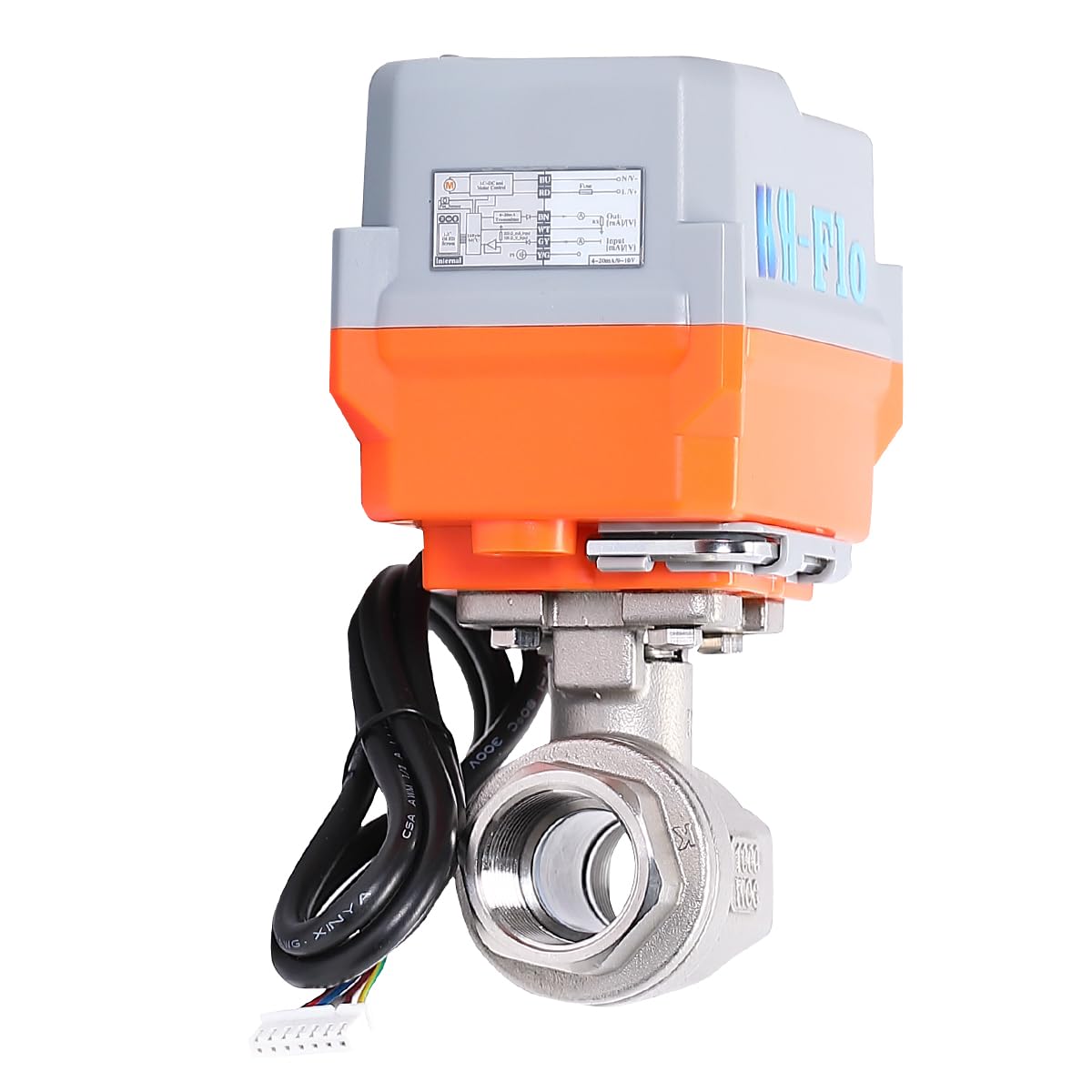

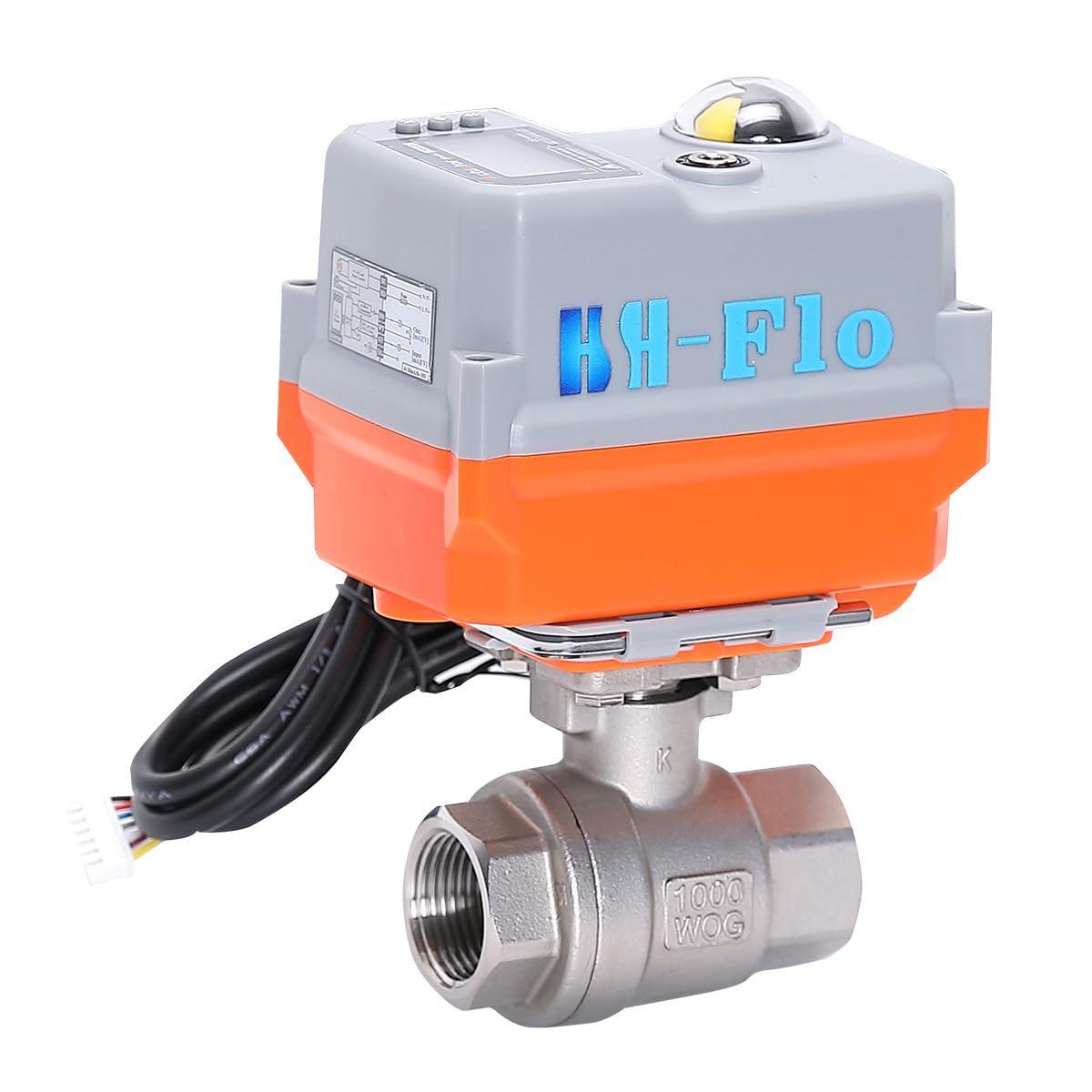

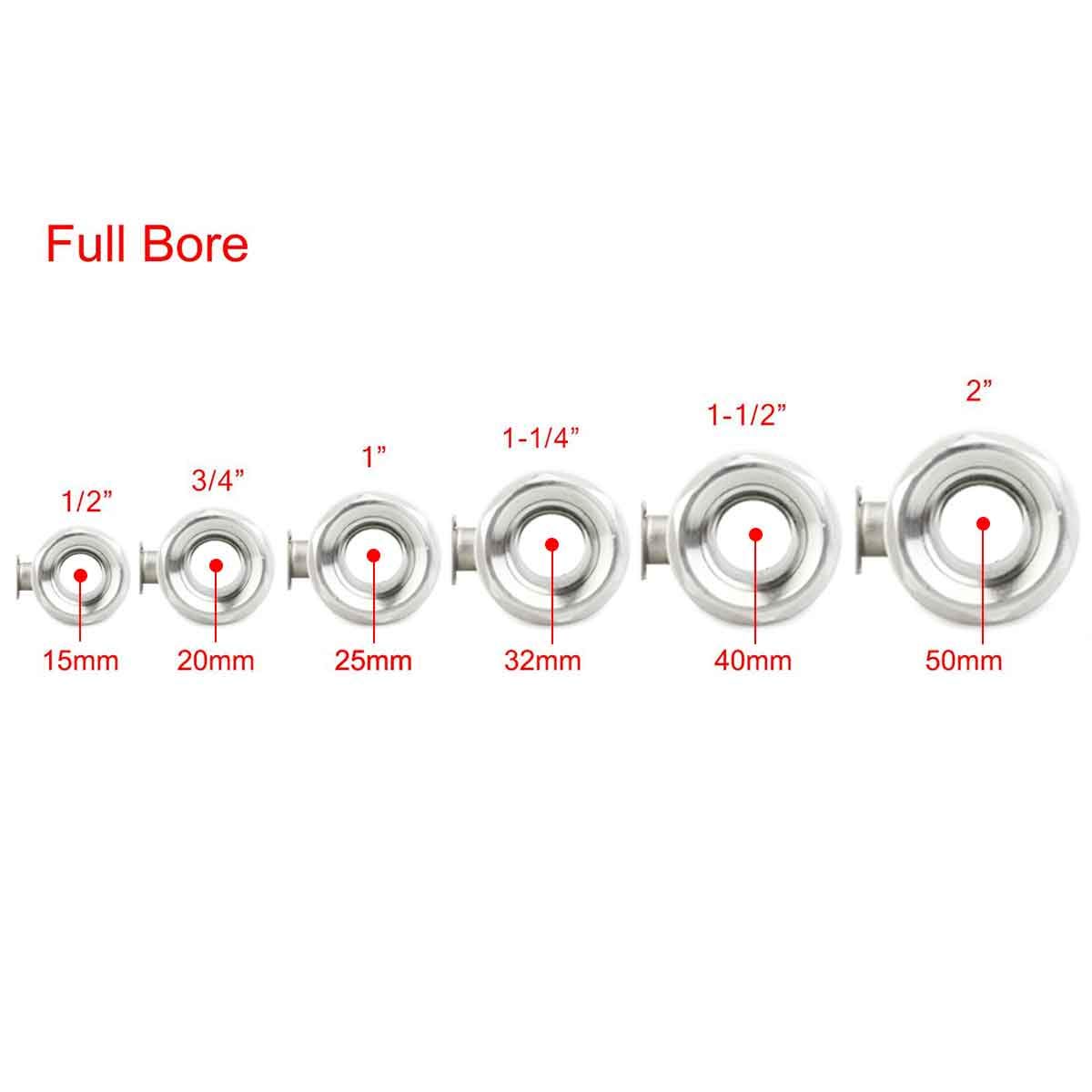

Product Overview ◎ Install Below 15N.m For 1/2" to 1-1/4"; 40 N.m For 1-1/2" to 2" ◎ Connection standard: ISO5211 F03、F04、F05 ◎ Valves: 2 Way , 3 Way Ball Valve and Butterfly Valve ◎ If you need 24V/110V/220V/380V AC, Pls contact with us ◎ If you need 0-10V、0-20mA、0-5V Control Method, Pls contact with us ◎ If you need NPT, Pls contact with us Electrical Data ◎ Rated Voltage: DC12V ◎ Power consumption: 15w@running 0.5w@holding ◎ Peak current: 950mA@5ms@ rated voltage ◎ Connecting cable: 7*0.2mm 2 cable, voltage withstand AC300V ◎ Fuse: 2A Functional Data ◎ Rated torque: 20N.m@rated voltage ◎Angle of rotation: 90±2° ◎ Max angle of rotation: 330°±5° ◎ Manual operation: ※ Matching hexagon wrench，using at no power ◎ Running time: About 10S (per 90°) ◎Continuous running: Continuous running ◎ Sound power level: Max50dB(A) ◎ Position indicator: Mechanical and screen Working conditions ◎ Electricity safety level:III Type (safety low voltage) ◎ Inflaming retarding level: V0 UL94 test method ◎ Enclosure:IP67 As Per En60529/GB4208-2008 (all directions); F type can add dehumidifying heater ◎ Insulation resistance: 100MΩ/500VDC ◎ Withstand voltage: 500VAC 1Min ◎Medium temperature: ≤80°can install to actuator directly; ＞80° need to install bracket or heat radiation stand ◎ Indoor or outdoor; if exposed to the rain or sunshine,need to install protective device for the actuator ◎ Not explosion proof products, do not use them in flammable and explosive environment. ◎ Ambient temp: -30℃— 60℃ ◎Non-operation temp: ≤-40℃ or ≥80℃
