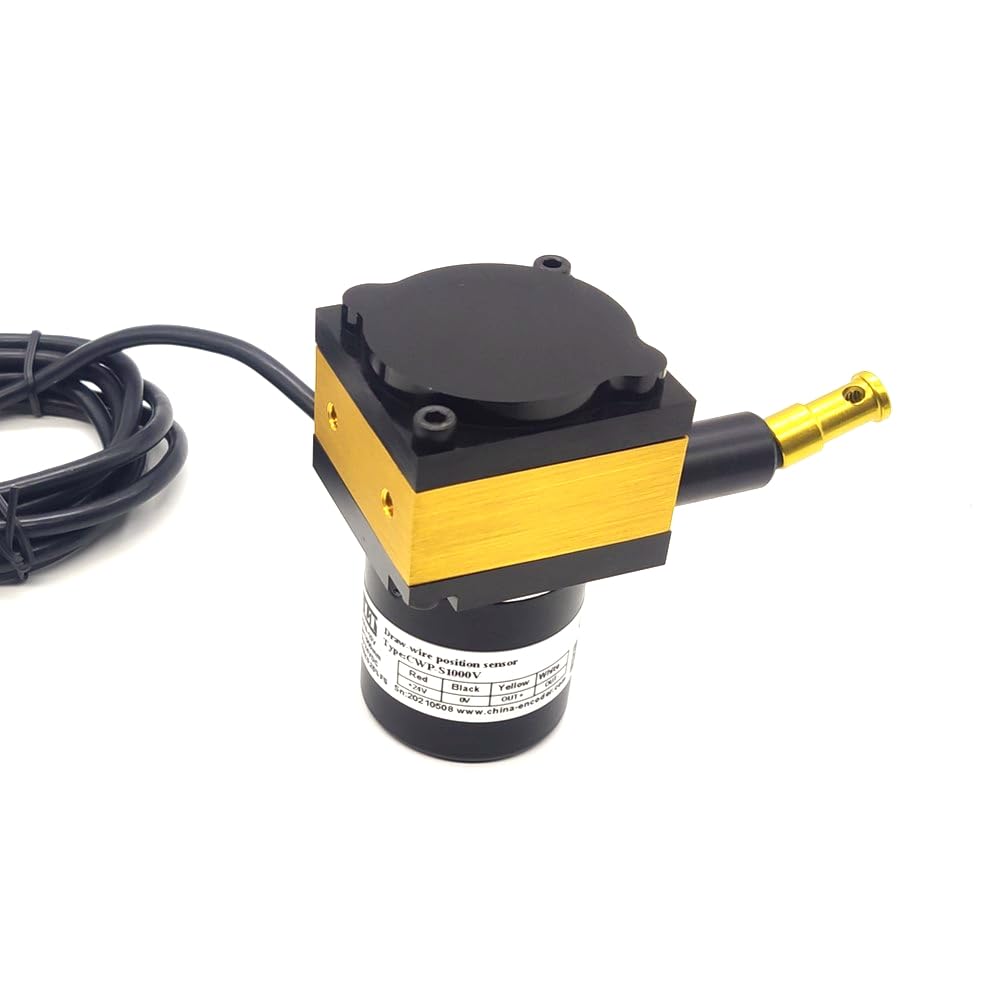

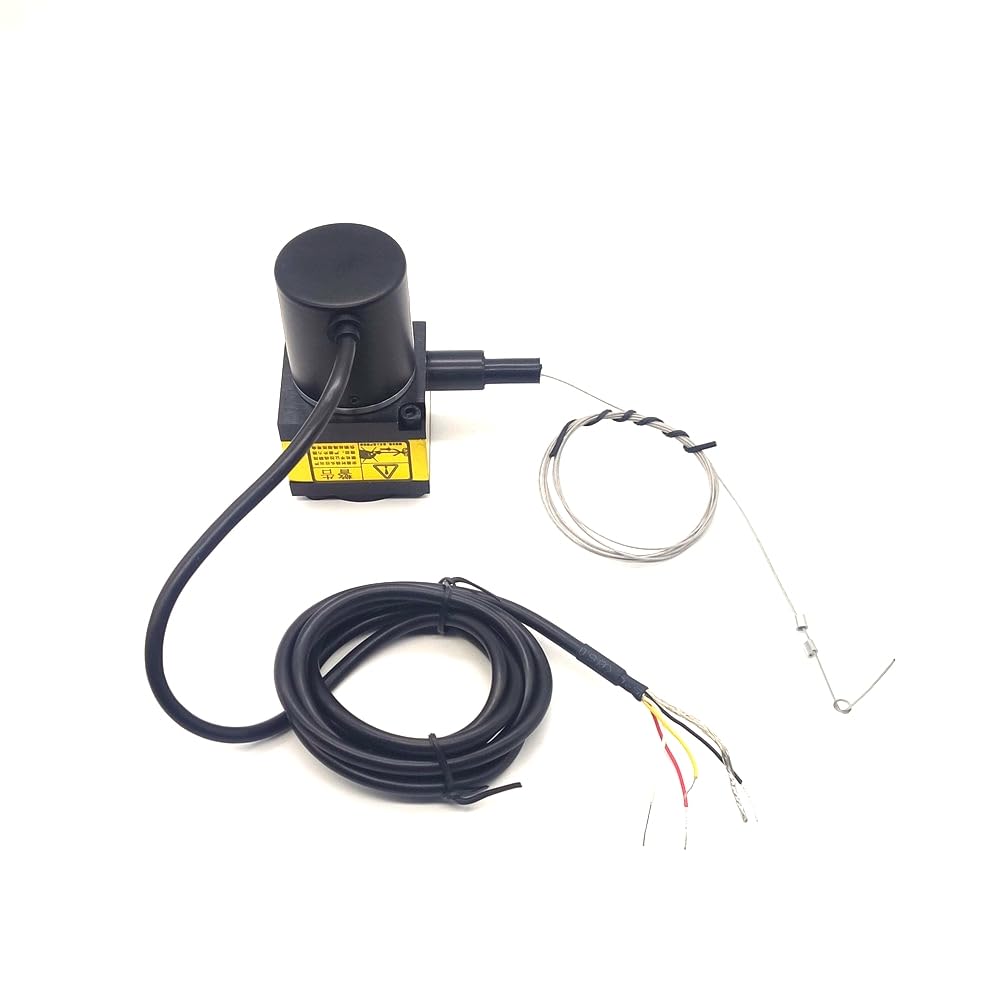

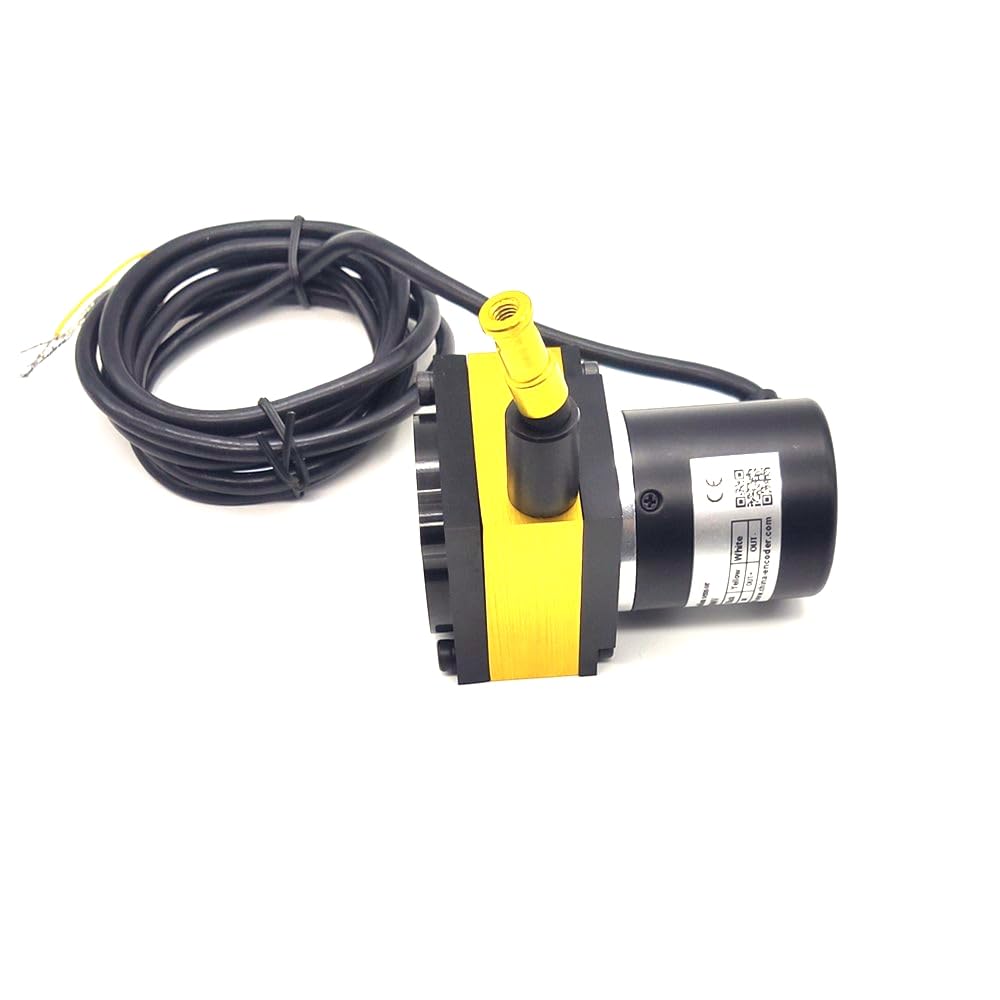

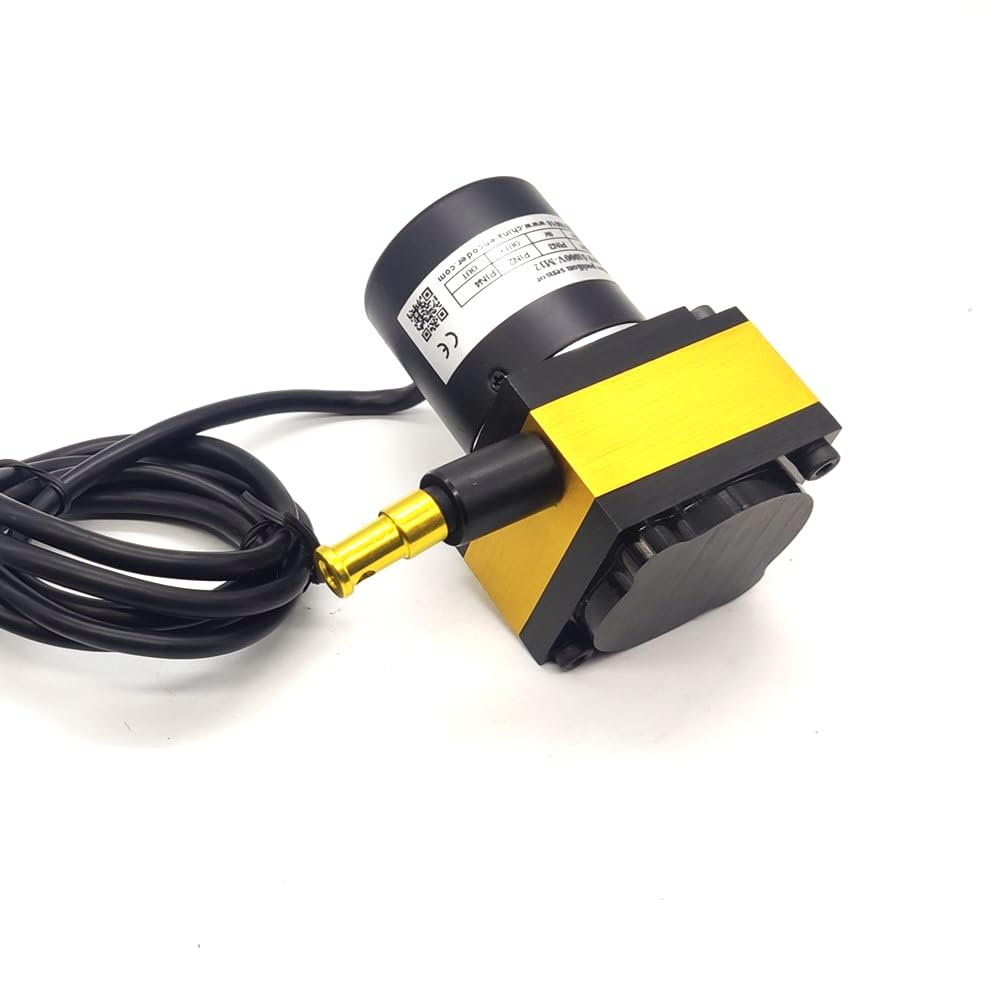

1500mm Analog Draw Wire Encoder - Linear Displacement Sensor for Length Measurement | 24Vdc Supply with 4-20mA Output | Ideal for Industrial Automation, CNC Machines & Robotics Positioning

$71.5

$130

Safe 45%

1500mm Analog Draw Wire Encoder - Linear Displacement Sensor for Length Measurement | 24Vdc Supply with 4-20mA Output | Ideal for Industrial Automation, CNC Machines & Robotics Positioning

1500mm Analog Draw Wire Encoder - Linear Displacement Sensor for Length Measurement | 24Vdc Supply with 4-20mA Output | Ideal for Industrial Automation, CNC Machines & Robotics Positioning

$71.5

$130

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

17 people viewing this product right now!

SKU: 18318078

Guranteed safe checkout

Description

Product Description of CWP-S1500 series draw wire Encoder Measuring Range :0~1500mm Linearity: Standard 0.25%FS wire rope: 0.6-1.2mm Operating Voltage :12~24V Dc rope maximum load: 16KG *Compact size, rugged construction, easy to install *Economic cost, and cost savings for customers *The cylinders, testing machines and other industry has achieved large-scale applications, reliability Instructions of CWP-S1500 series draw wire Encoder Selection guide of draw wire Encoder

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

1500mm length（about 59 inches ）

24DC Supply voltage, 4-20mA Signal output

MAX pull speed 600mm/s. 0.25%FS linearity

0.6mm plastic coated wire rope.

Highly efficient linear displacement measuring device. Used in the cylinders, testing machines and other industry
