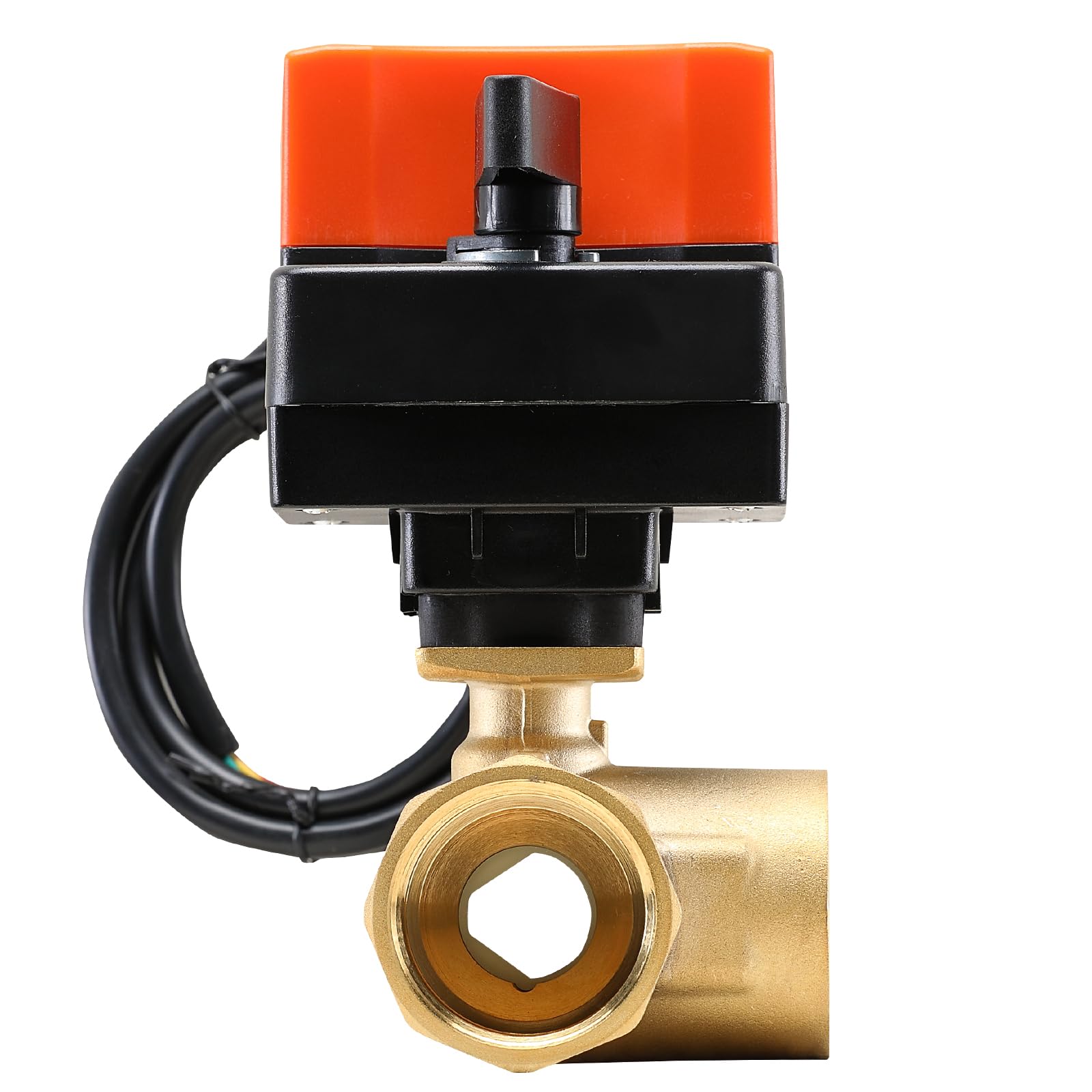

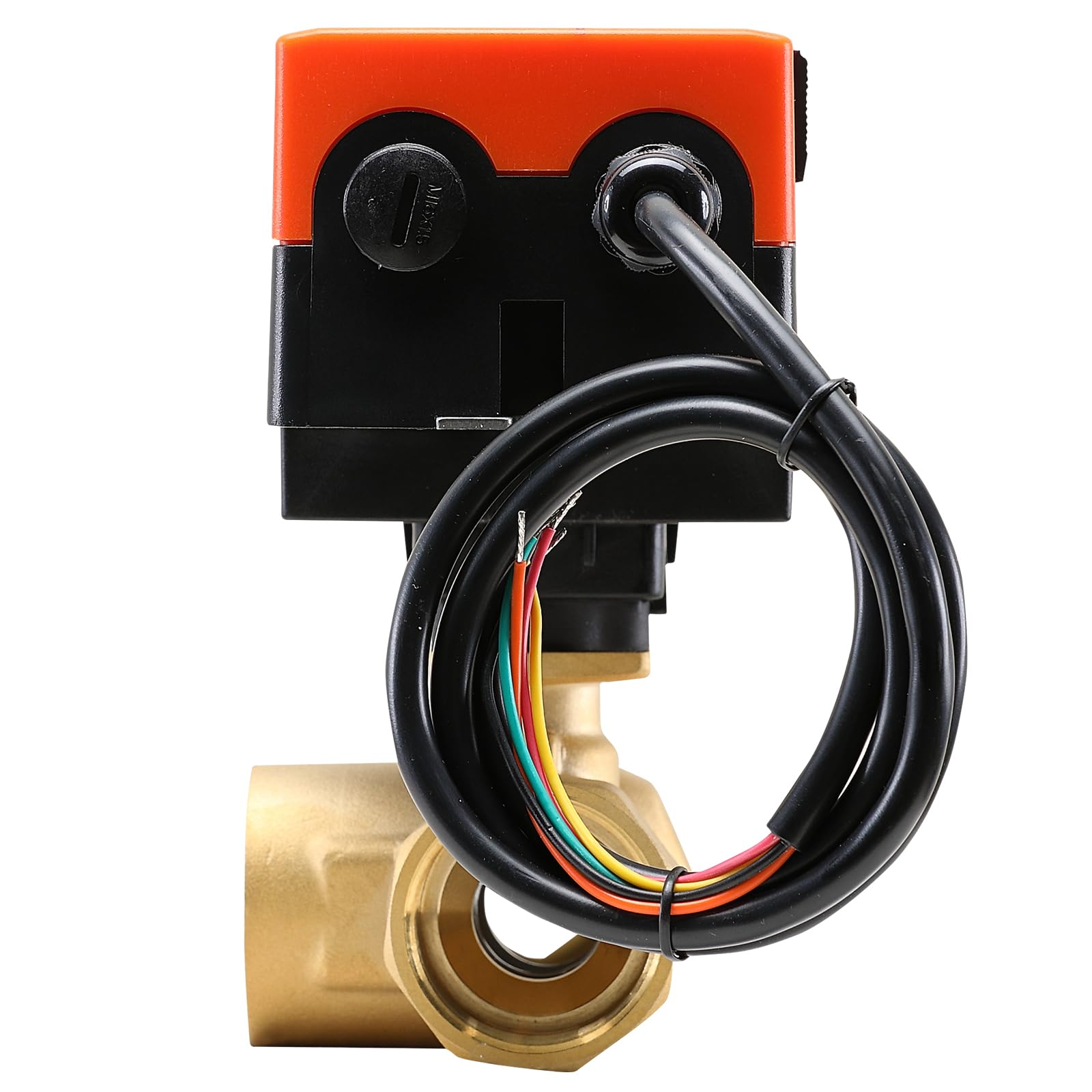

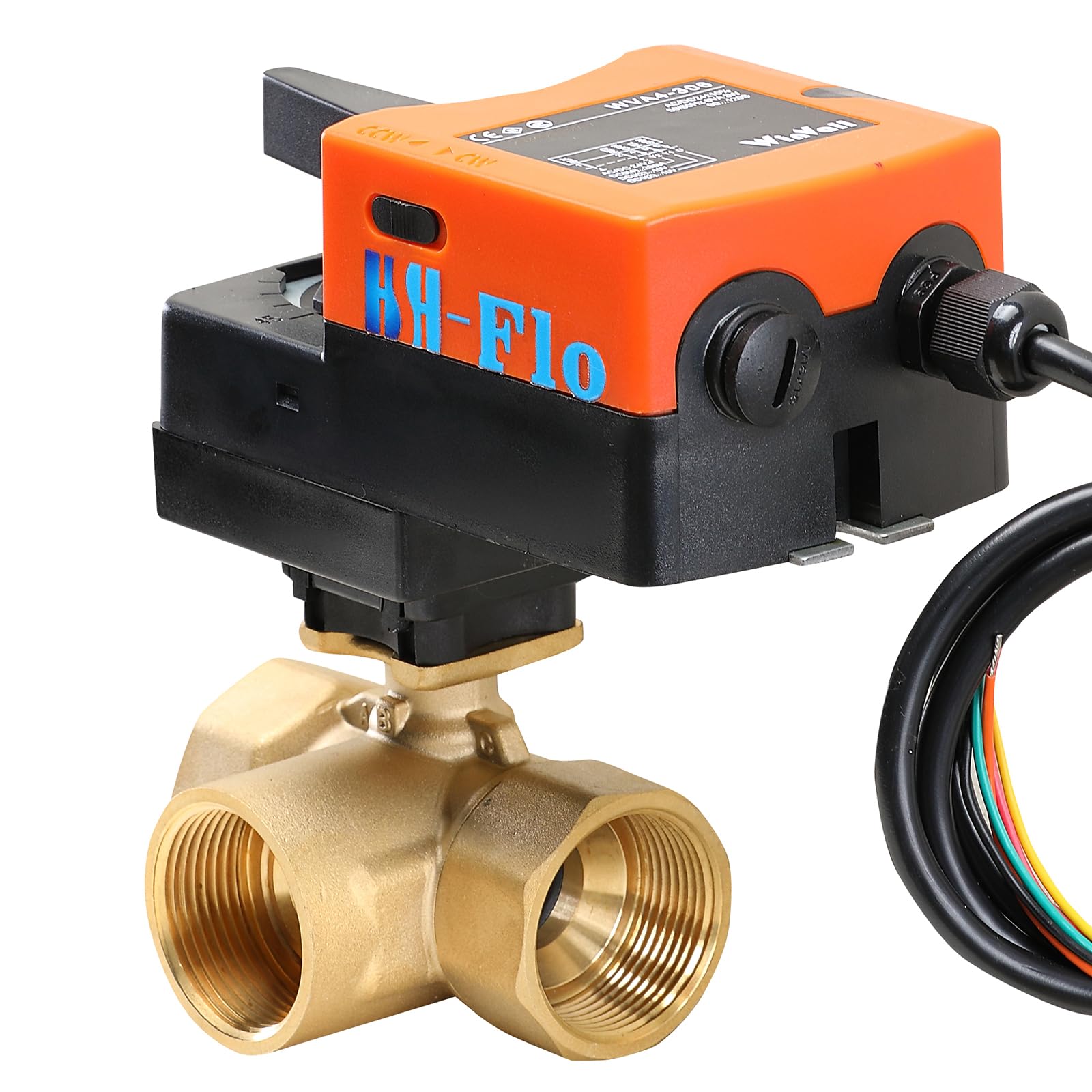

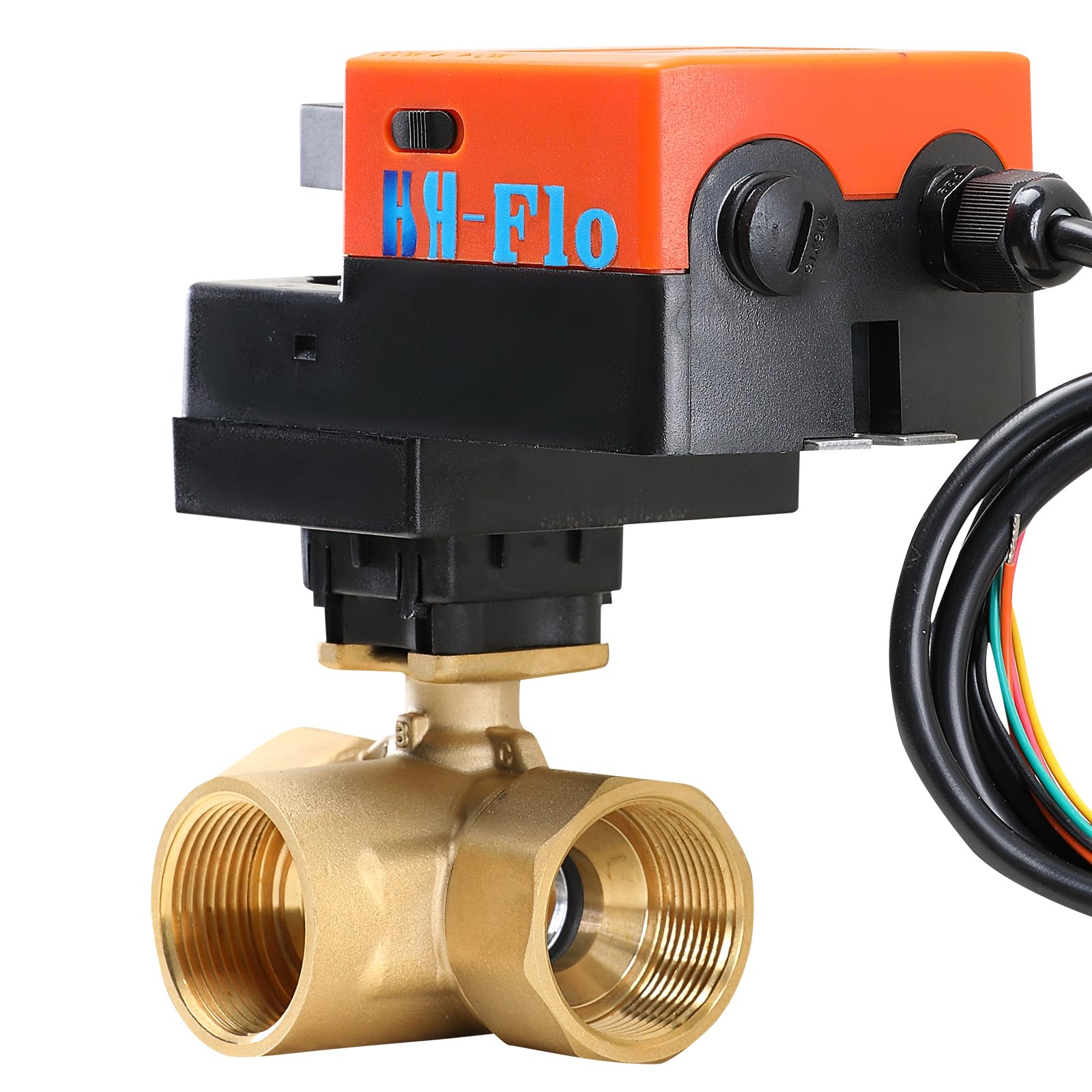

1-1/4 Inch 3-Way 24VAC/DC 0-10V 4-20mA Brass Proportional Integral Modulating Motorized Ball Valve - Perfect for HVAC, Water Treatment, and Industrial Automation Systems

$142.99

$259.99

Safe 45%

1-1/4 Inch 3-Way 24VAC/DC 0-10V 4-20mA Brass Proportional Integral Modulating Motorized Ball Valve - Perfect for HVAC, Water Treatment, and Industrial Automation Systems

1-1/4 Inch 3-Way 24VAC/DC 0-10V 4-20mA Brass Proportional Integral Modulating Motorized Ball Valve - Perfect for HVAC, Water Treatment, and Industrial Automation Systems

$142.99

$259.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

9 people viewing this product right now!

SKU: 31784351

Guranteed safe checkout

Description

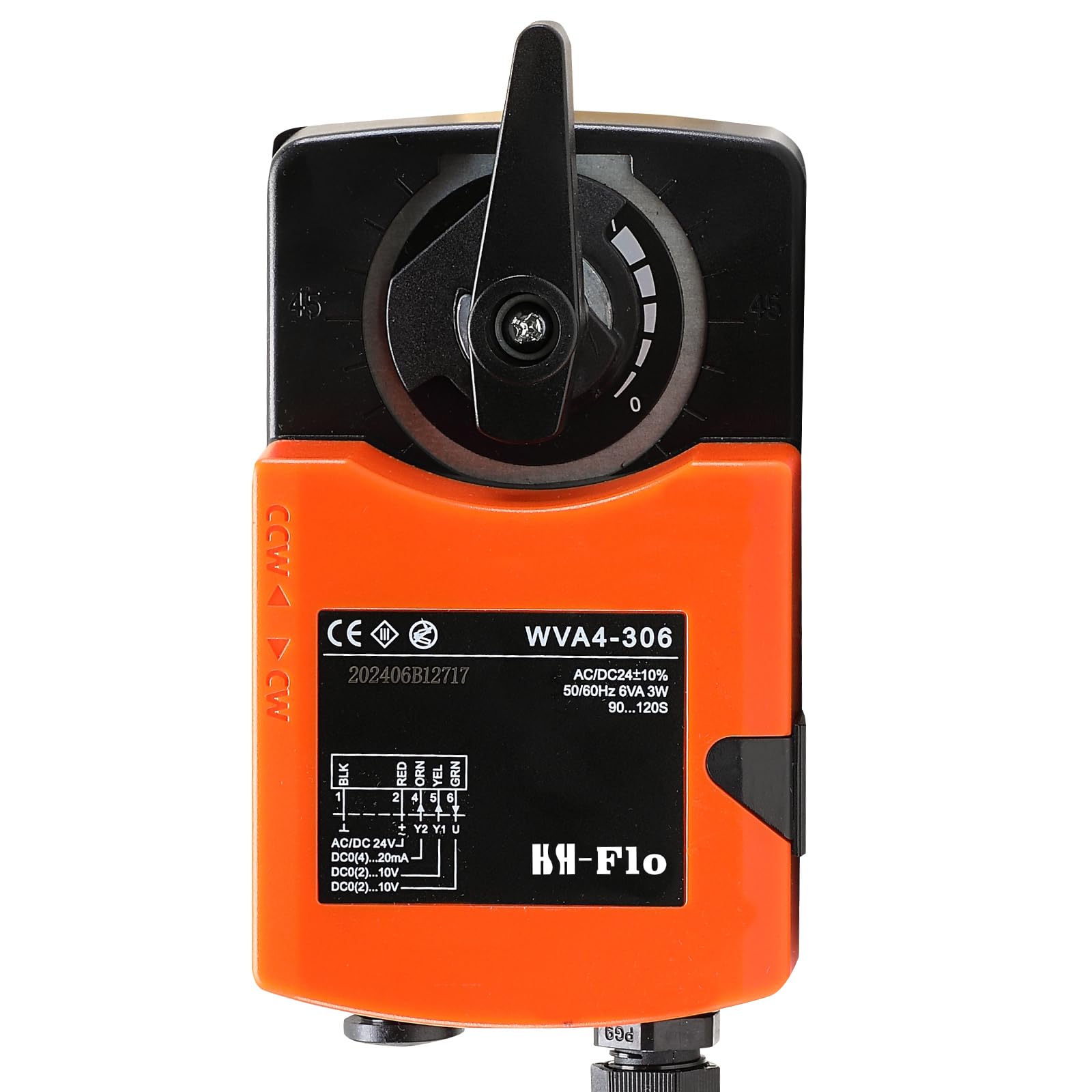

Actuator (Moto):Power Consumption: 6VA;Input Singal: 0-10V and 4-20mA;Ambient Temperature: -5°C~60°C;Ambient Humidity: 0-90% RH;Protect Rank: IP54;Power supply: 24VAC/DC;Output torque: 6N.M;Angle of Rotation: 90°;Manual Handle: Installed;Automatic Overload Protection System.Valve Body:Valve Size: 1-1/4";Pipe Connection: G/BSP;Medium: Cold/Hot Water, With 50% Glycol;Temperature of Medium: 2°C...90°C;Rated Pressure: 290 Psi (2.0Mpa);Pipe Connector: BSP Internal Thread;Valve Type: 3-Way;Cv Value: 18.67 Gal/Hours;Material:Valve Body: Forged Brass (Hpb59-1);Ball: Chrome-Plated Brass;Seal: EPDM+PTFE Ball, EPDM Stem;Valve Connector: PCValve Spindle: Aluminum Alloy;Description:The Control Ball Valve Consists Of 6N.M Series Rotary Actuator And WCBS… Series Ball Valve. Flow Characteristic Guarantees The Valve Performances Of Stability. Control Ball Valves Are Widely Used In HVAC System, Heating System, Water Treatment Equipment, And Water Running Control In Industrial Automation, Such As: AHU, Flesh.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

290 Psi, 18.67 Gal/Hours Cv Value, 1-1/4 inch BSP Thread Three Way Brass Valve Body;

24VAC/DC Input Voltage, 0-10V/2-10V and 4-20mA/0-20mA Dual Input Signal 6 N.M Torque Actuator;

Manual Override Control In Case Power Failed, Automatic Overload Protection System, IP54 Waterproof Rating

Widely Used In HVAC System, Heating System, Water Treatment Equipment, And Water Running Control In Industrial Automation
