ETCR030D1 DC Clamp Leakage Current Sensor Meter - 0.0mA to 100mA Range, 1mA Resolution - Ideal for Solar Panel Systems, EV Chargers & Industrial Equipment Testing

$82.5

$150

Safe 45%

ETCR030D1 DC Clamp Leakage Current Sensor Meter - 0.0mA to 100mA Range, 1mA Resolution - Ideal for Solar Panel Systems, EV Chargers & Industrial Equipment Testing

ETCR030D1 DC Clamp Leakage Current Sensor Meter - 0.0mA to 100mA Range, 1mA Resolution - Ideal for Solar Panel Systems, EV Chargers & Industrial Equipment Testing

$82.5

$150

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

23 people viewing this product right now!

SKU: 32052214

Guranteed safe checkout

Description

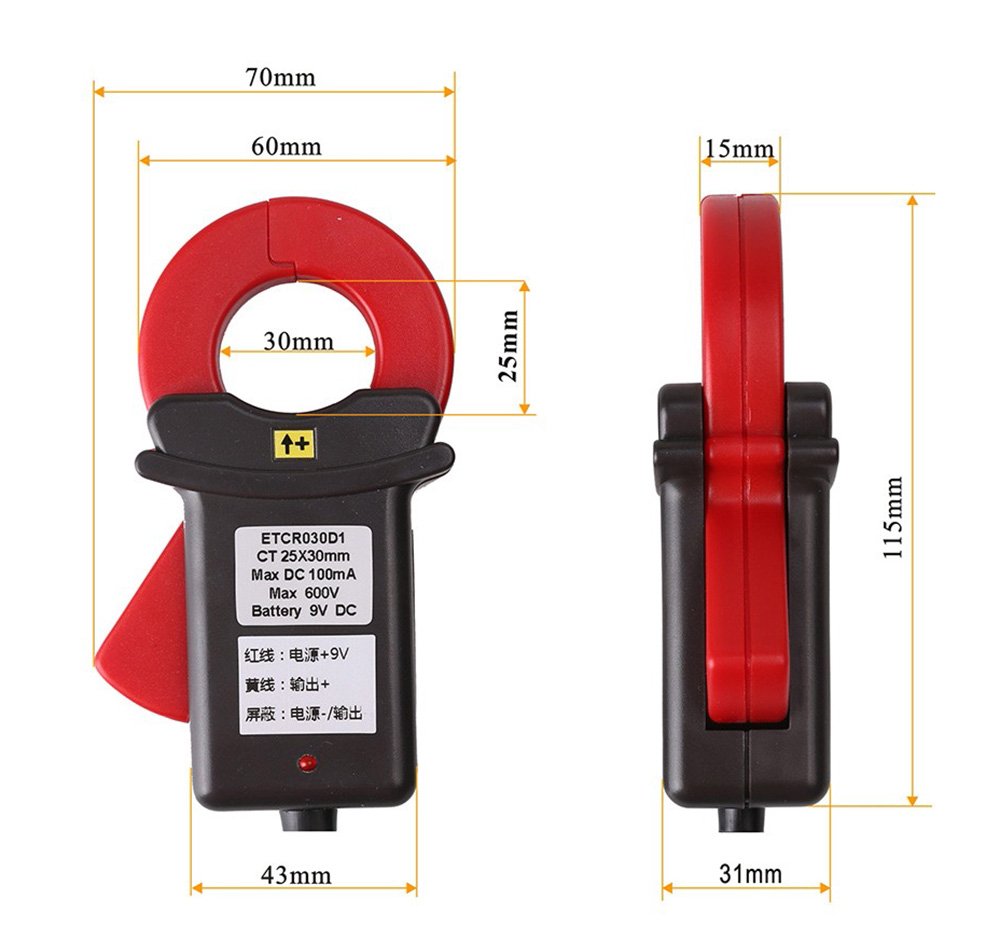

Features: ETCR030D1 high-precision clamp DC leakage current sensor, suitable for high-accuracy DC leakage current, DC current detection, measuring range: DC 0.0mA~100mA, corresponding output DC 0~2.5V, jaw size 25mm x 30mm. Specification Power Supply : DC 9V(external) CT size : 25mm x 30mm Range : DC 0.0mA～100mA Voltage output: DC: 25mV/mA, that is, 0～100mA corresponding output 0～2.5V Resolution : DC: 0.1mA Accuracy: ±3.0%FS(50Hz/60Hz;23°C±2°C) Linearity : ≤2.0% Phase error : ≤3°(50Hz/60Hz; 23°C±2°C) Standard turn ratio : 1:800 Power Consumption : ≤2mW Output Mode : Voltage Sensing Output Output Interface : Default Bare Header Output line: 2 meters long line Connection mode : Red wire: power input is positive; yellow wire: signal output is positive; bare wire: power input is negative/signal output is negative Detection method : Clamp CT, non-contact measurement Lead position : The tested lead is in the center of the jaw Line voltage : below AC 600V line test Working environment: -15°C～45°C; 80%Rh Storage environment: -10°C～60°C; 70%Rh Insulation strength : AC3700V/rms (between core and shell) Suitable for safety regulations: IEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT III (600V) Weight : 180g Size: L x W x H:115mm×70mm×33mm

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

★Permalloy iron core and double-layer shielding technology are adopted, and the anti-interference ability is strong, ensuring the accuracy and stability of the measurement.

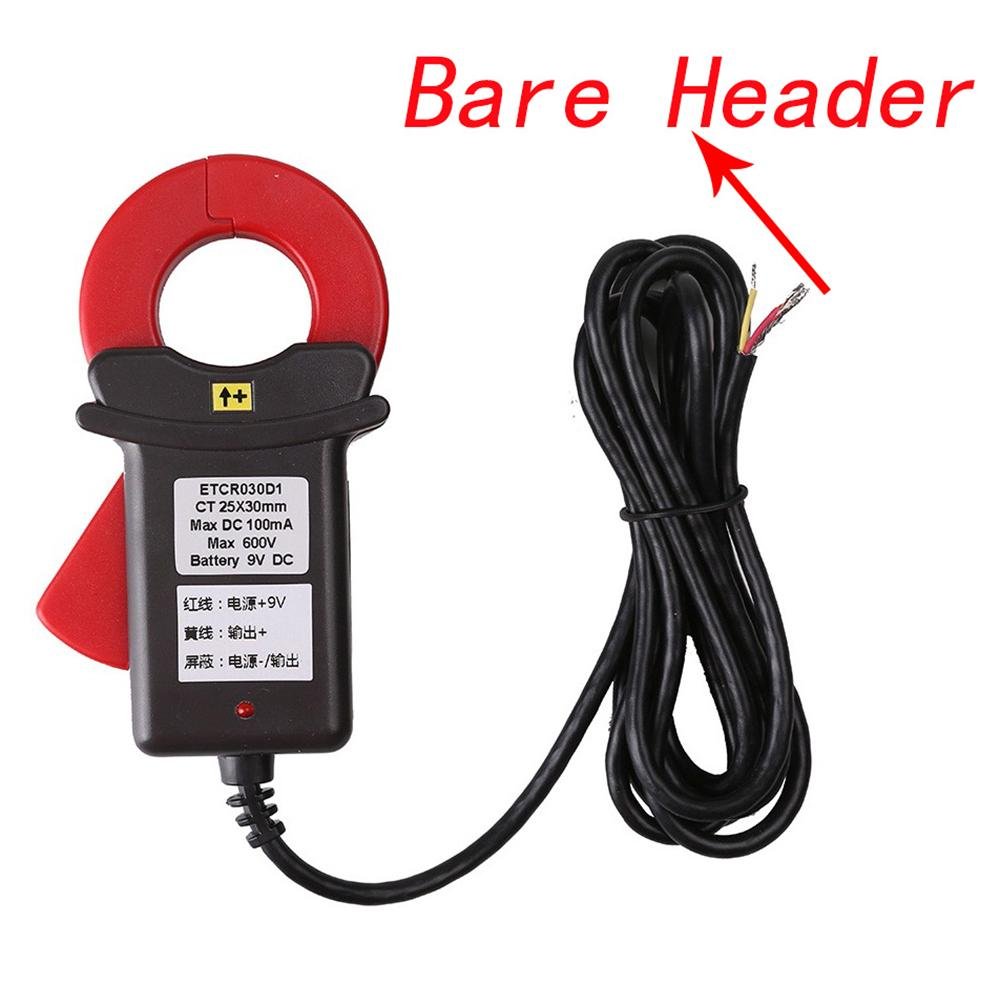

★Detection method Clamp CT, non-contact measurement; Power Consumption ≤2mW; Output Interface Default Bare Header; Output line 2 meters long line

★Resolution DC 0.1mA; Accuracy ±3.0%FS(50Hz/60Hz;23°C±2°C);Linearity ≤2.0% ; Standard turn ratio 1800

★CT size 25mm x 30mm; Range DC 0.0mA～100mA; DC 25mV/mA, that is, 0～100mA corresponding output 0～2.5V

★ Non-contact measurement method is adopted for safe and simple operation; The sensor adopts the clamp-shaped CT structure, which can be measured without disconnecting the measured circuit.
