KTC Series Linear Displacement Sensor 800mm-1250mm with 4-20mA (2-Wire) or 0-10V Output - 1000mm Length for Industrial Automation, CNC Machines, and Robotics Applications

$92.76

$168.67

Safe 45%

KTC Series Linear Displacement Sensor 800mm-1250mm with 4-20mA (2-Wire) or 0-10V Output - 1000mm Length for Industrial Automation, CNC Machines, and Robotics Applications

KTC Series Linear Displacement Sensor 800mm-1250mm with 4-20mA (2-Wire) or 0-10V Output - 1000mm Length for Industrial Automation, CNC Machines, and Robotics Applications

$92.76

$168.67

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

23 people viewing this product right now!

SKU: 38989026

Guranteed safe checkout

Description

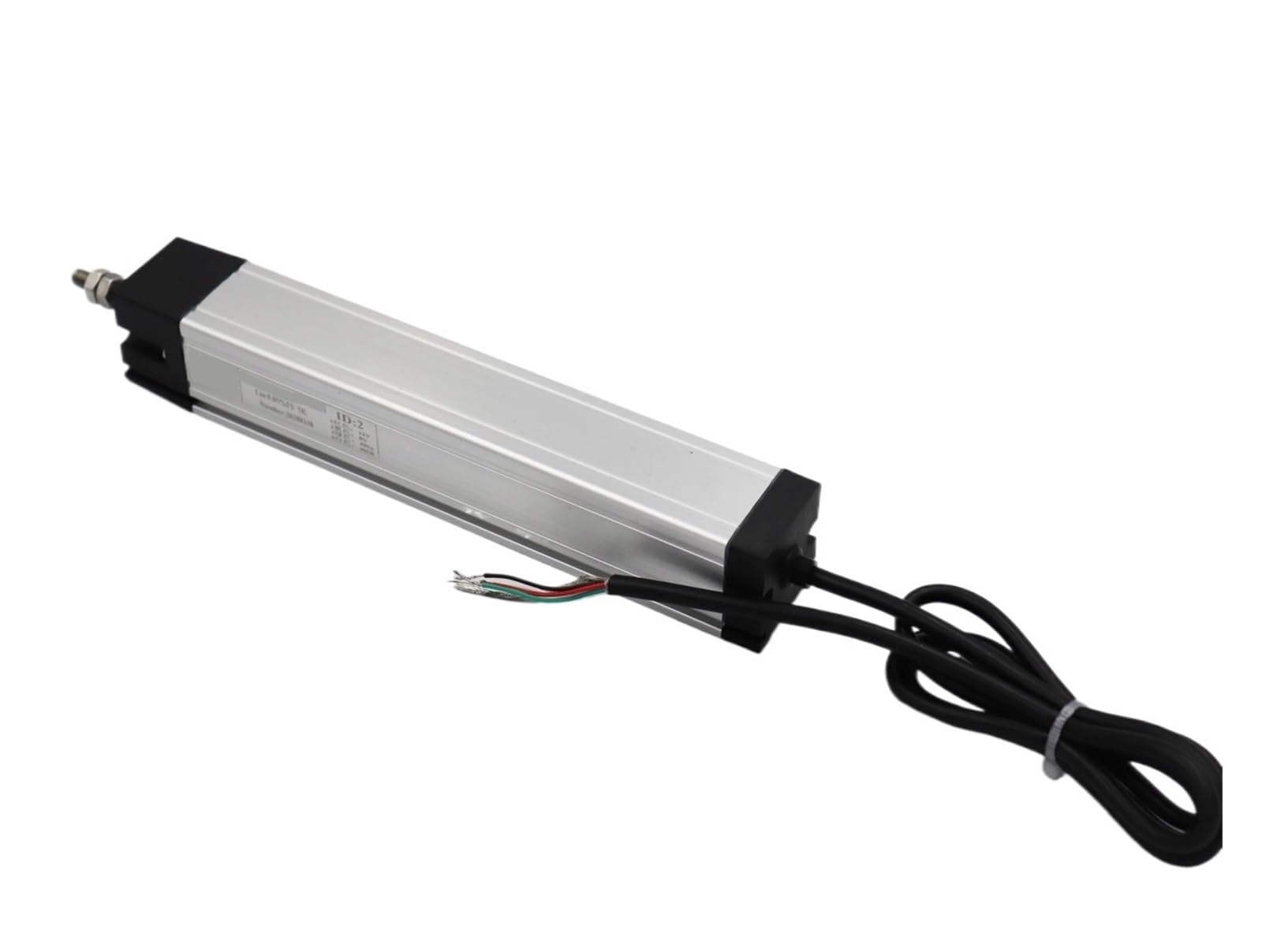

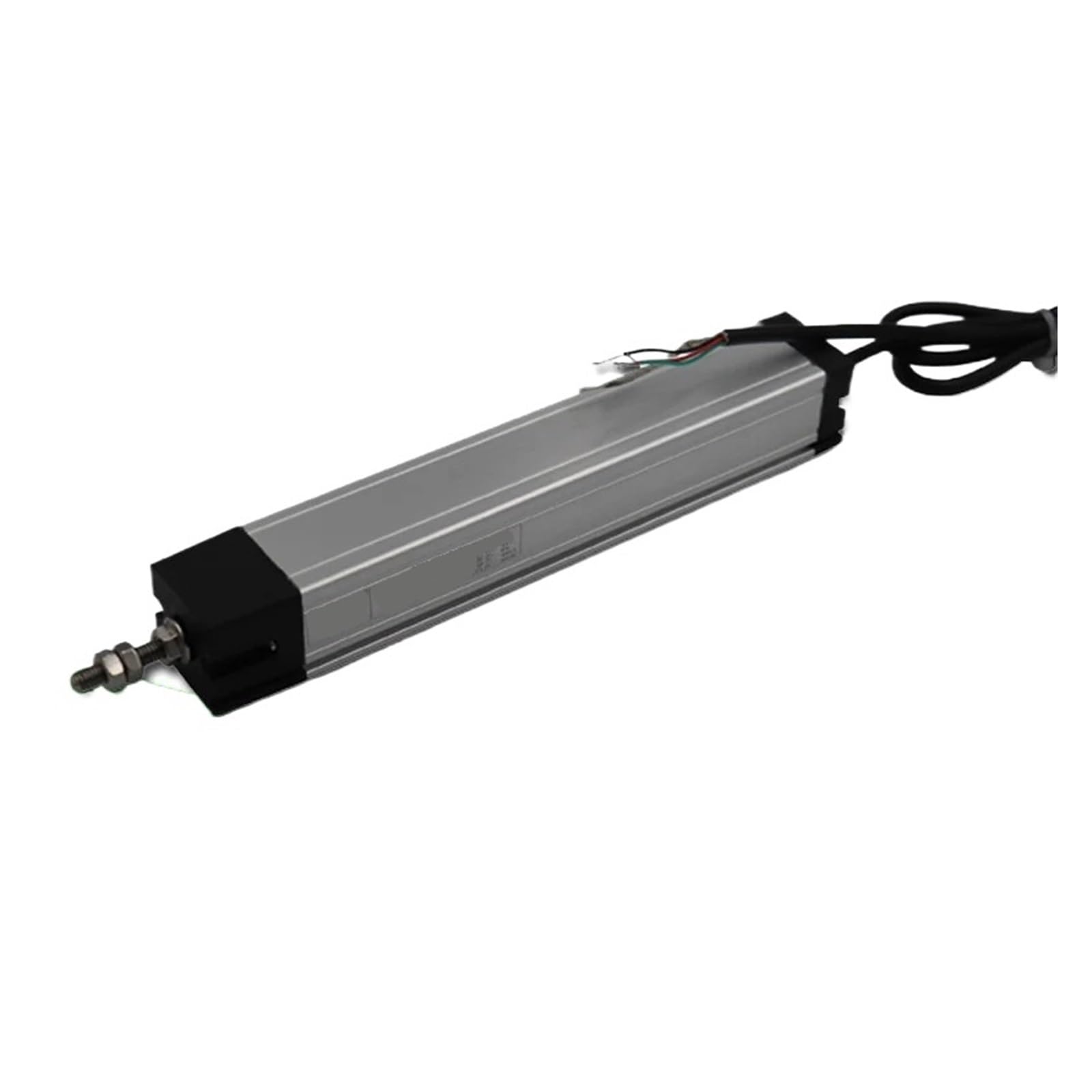

The product descriptionKTC pull rod linear displacement sensor, range 50-1250mm, sensor potentiometer principle,the output DC voltage signal can be built-in or external transmission module, the signal intothe standard 0-5V , 0-10V, 4-20mA analog signal or RS485 digital signal .Performance parametersRange 50-550mm 600-1250mm Linear accuracy 0. 05% 0. 04% Resistance value ( 10% ) 5K 10K Repeatability accuracy 0. 01mm Mechanical stroke Range + 7mm resolution Infinite uninterrupted analysis Maximum allowable working voltage 36V DC Current is recommended 10 mA output signal Maximum working speed 10m/s Operating temperature Range -60 - 150 service life More than 100 * 106 times (or more than 25 * 106m) Temperature drift coefficient <;1. 5PPM/ Impact coefficient IEC68-2-29 : 1968 50g Vibration coefficient IEC68-2-6 : 1982 20g
