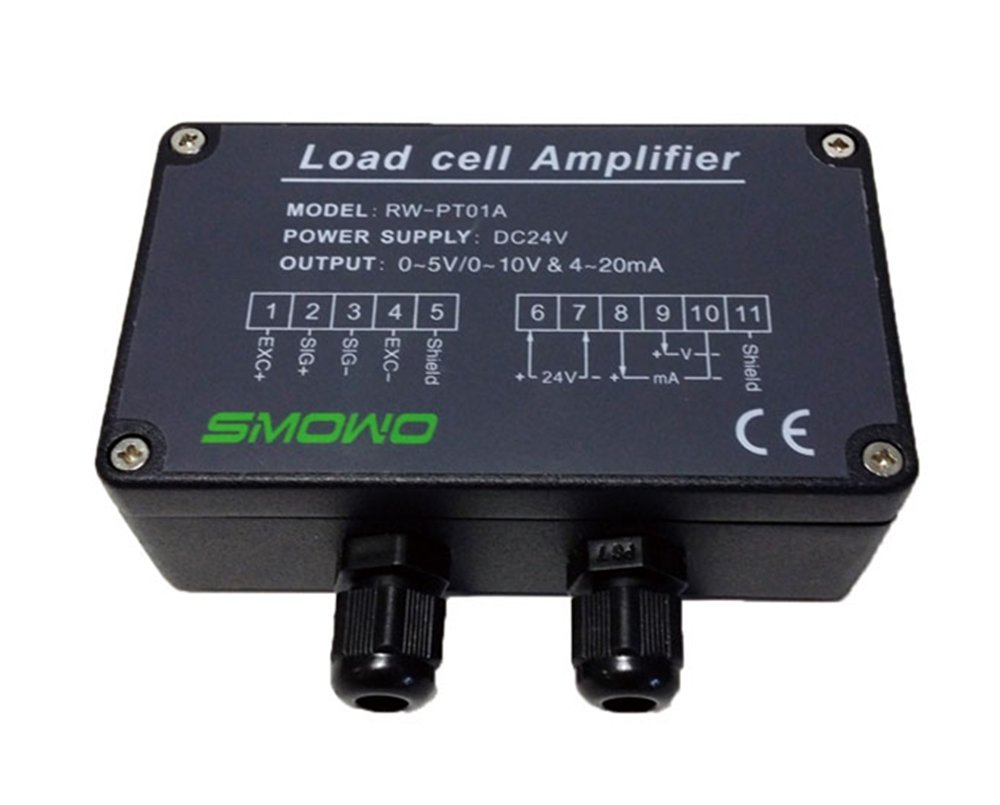

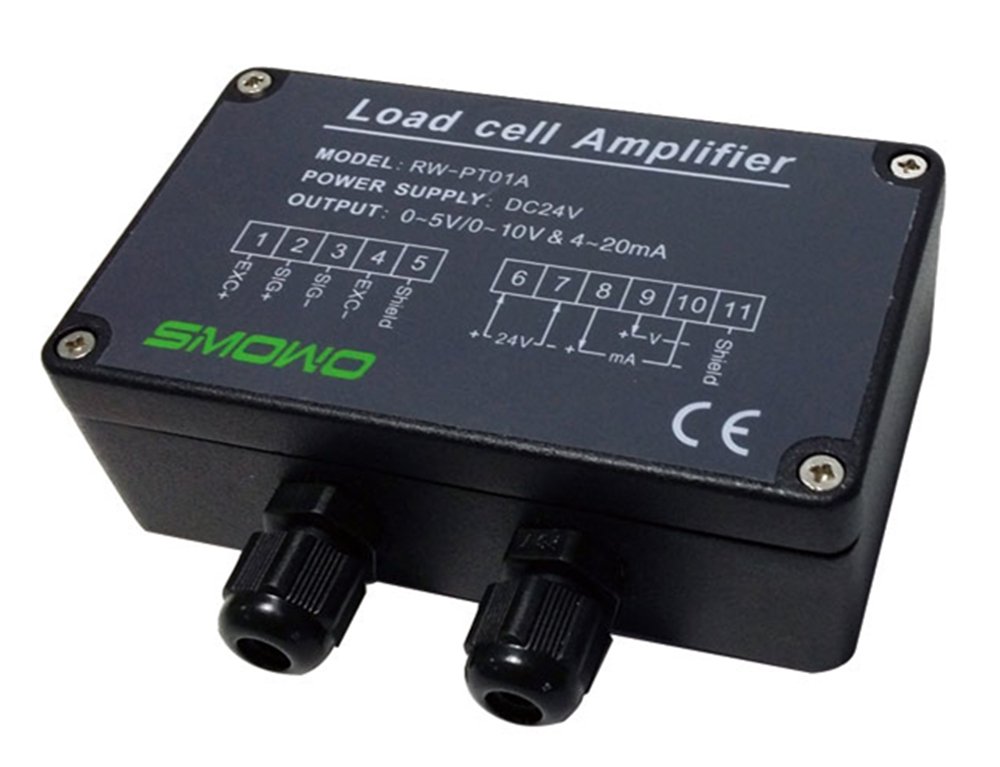

Brief Introduction More wider input sensitivity range selection 0.5-7.3mV/V
5V/10V Excitation voltage options
Cast aluminum enclosure with waterproof design and good sealing
Built-in precision amplifying circuit, high accuracy and small temperature drift
Low-pass filter inside
Strong load capacity, connected to many load cells at the same time with multichannel junction box
Providing current and voltage simultaneously and opting freely through connecting terminal
Application all full bridge stain gauge load cells for weighing, tension, compression, torque, etc.
Technical Data
Input signalFull bridge strain gauge load cell
Sensitivity0.5 to 7.3 mV/V
Excitation voltage5 /10 V DC
Excitation current100mA
Power supply18 to 26 V DC
Linearity0.1%
Temperature coefficient100ppm
Operation temperature0 to 70ºC
Weight300g
