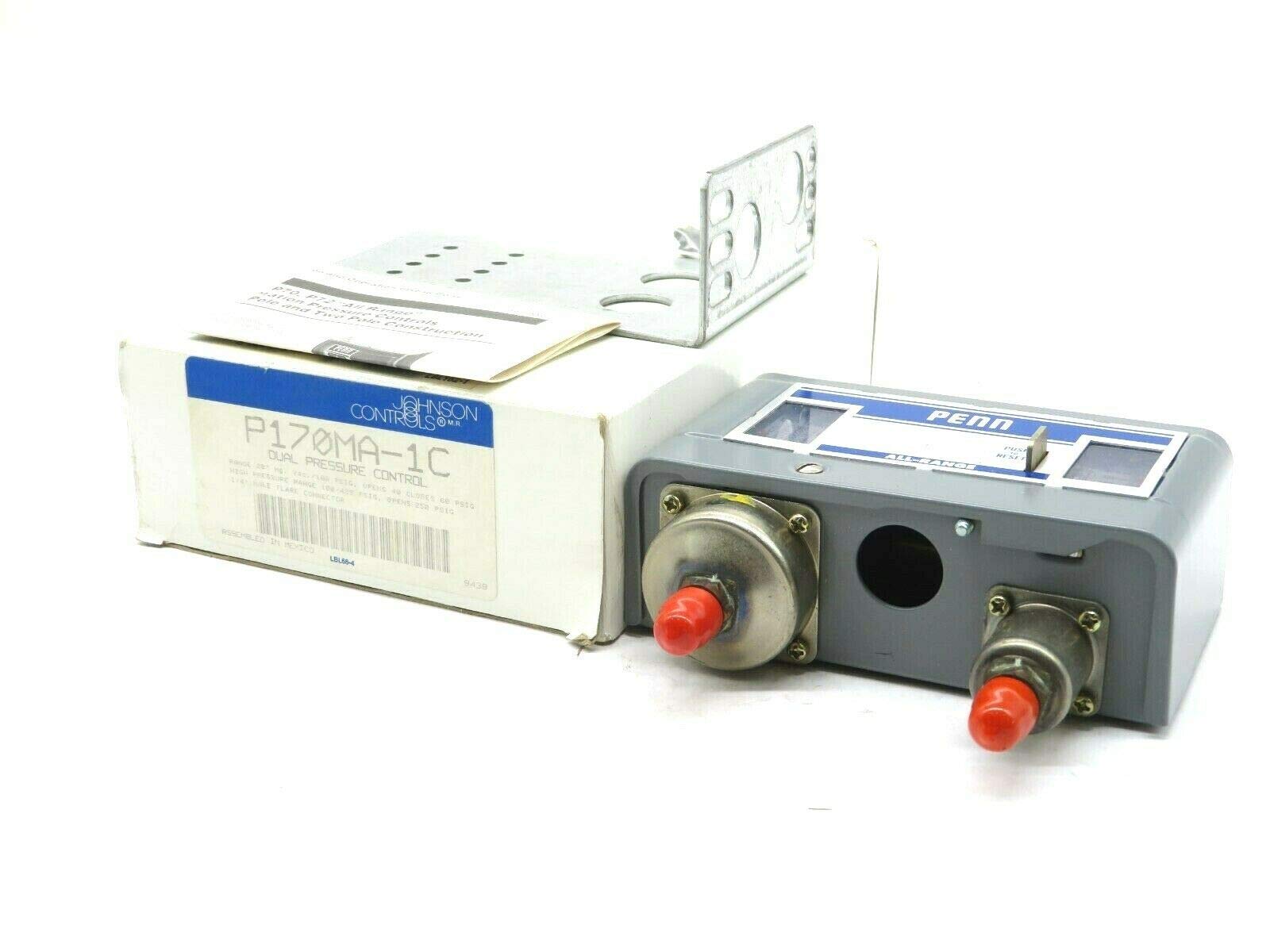

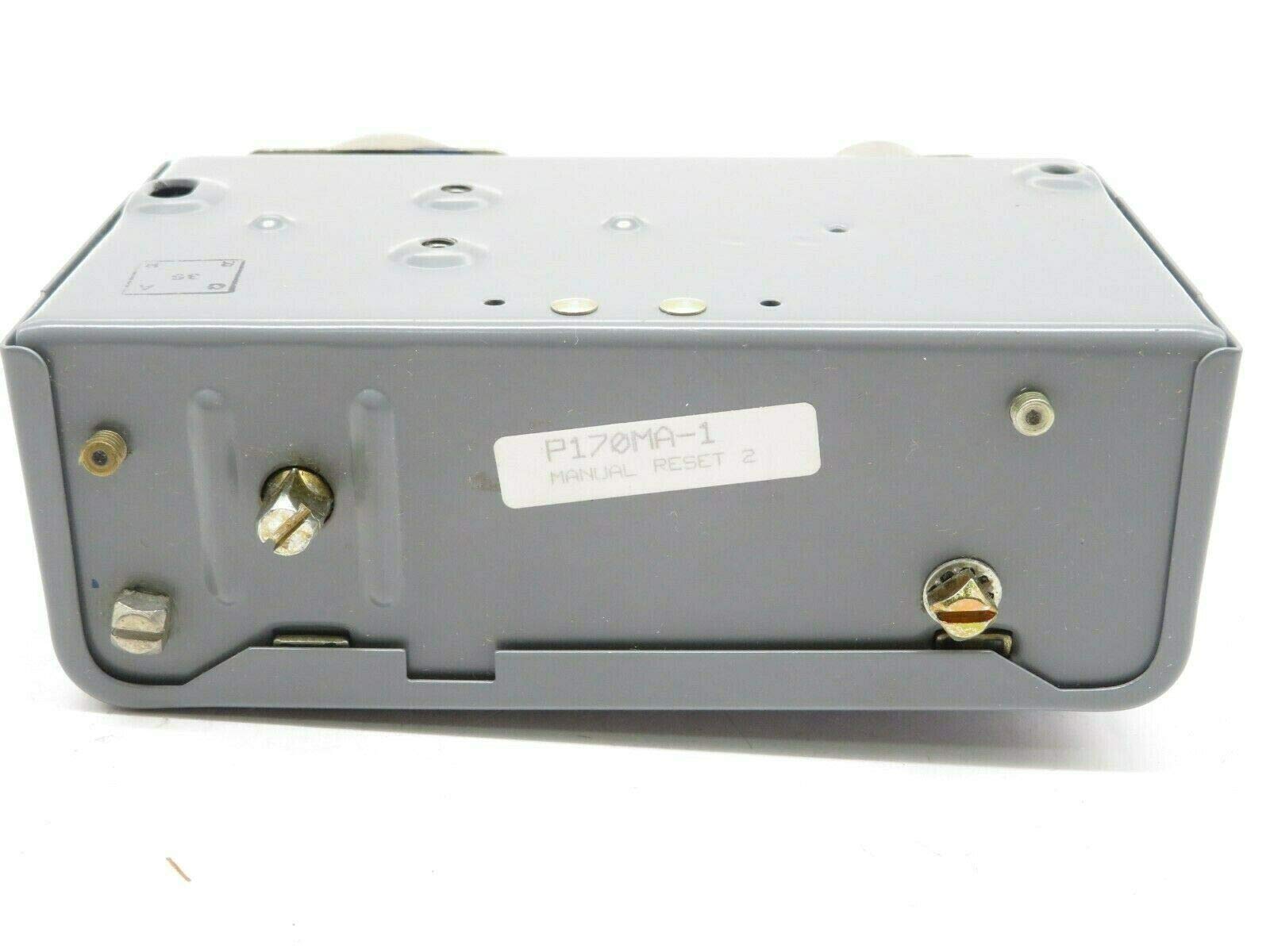

Johnson Controls P170MA-1C Dual Pressure Control Switch SPST - HVAC System, Refrigeration Unit & Air Compressor Pressure Regulator

$135.93

$247.15

Safe 45%

Johnson Controls P170MA-1C Dual Pressure Control Switch SPST - HVAC System, Refrigeration Unit & Air Compressor Pressure Regulator

Johnson Controls P170MA-1C Dual Pressure Control Switch SPST - HVAC System, Refrigeration Unit & Air Compressor Pressure Regulator

$135.93

$247.15

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

8 people viewing this product right now!

SKU: 58317566

Guranteed safe checkout

Description

The P70, P72, and P170 Controls for Dual Pressure Applications are designed primarily for use as combination high and low pressure controls on commercial refrigeration and air conditioning applications. These controls are available in several pressure ranges and are compatible with most common refrigerants. Ammonia compatible models are also available. These controls respond directly to system pressure changes on both high and low sides, and can provide single-device control of the compressor. Controls are available in several different electrical ratings and switch configurations, including independent high and low pressure switches (on P70S and P170S models). The P72 models provide direct control of 208 to 240 volt, single-phase motors up to three horsepower, and 208 to 220 volt, three-phase motors up to five horsepower.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

All-steel case and cover built to provide long lasting, rugged protection for internal components

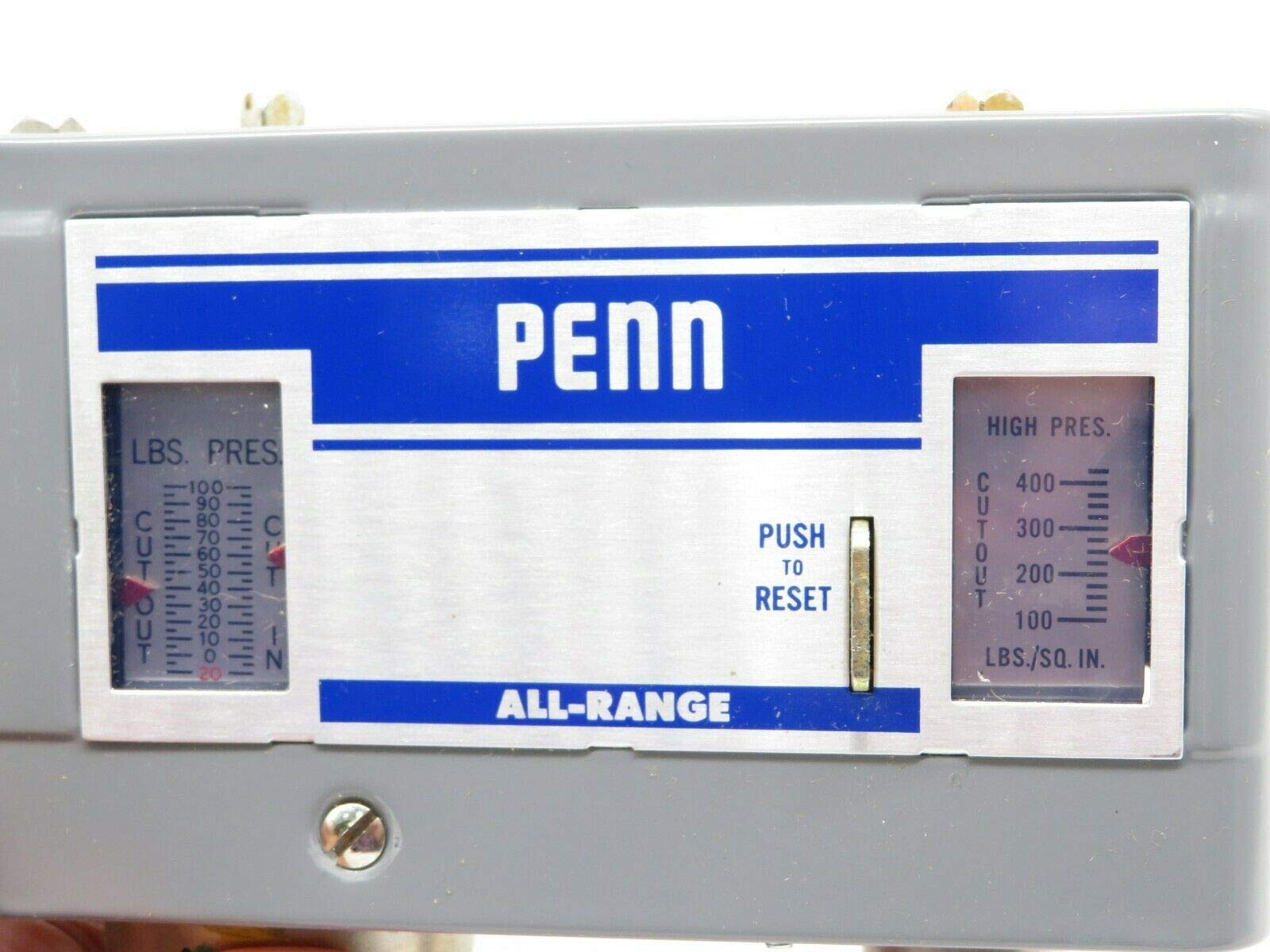

Sight-set calibrated pressure adjustment displays a visible pressure scale, fully adjustable through the range without removing the cover (on NEMA 1 enclosure models)

MICRO-SET differential option allows for precise control on low pressure applications

Independent high and low pressure switches (P70S and P170S Models) satisfies a variety of dual pressure application wiring requirements with a single versatile control

Convertible high pressure reset–auto reset or manual reset lockout (P70S and P170S Models) reduces inventory—one control can be adapted to several dual pressure applications in the field
