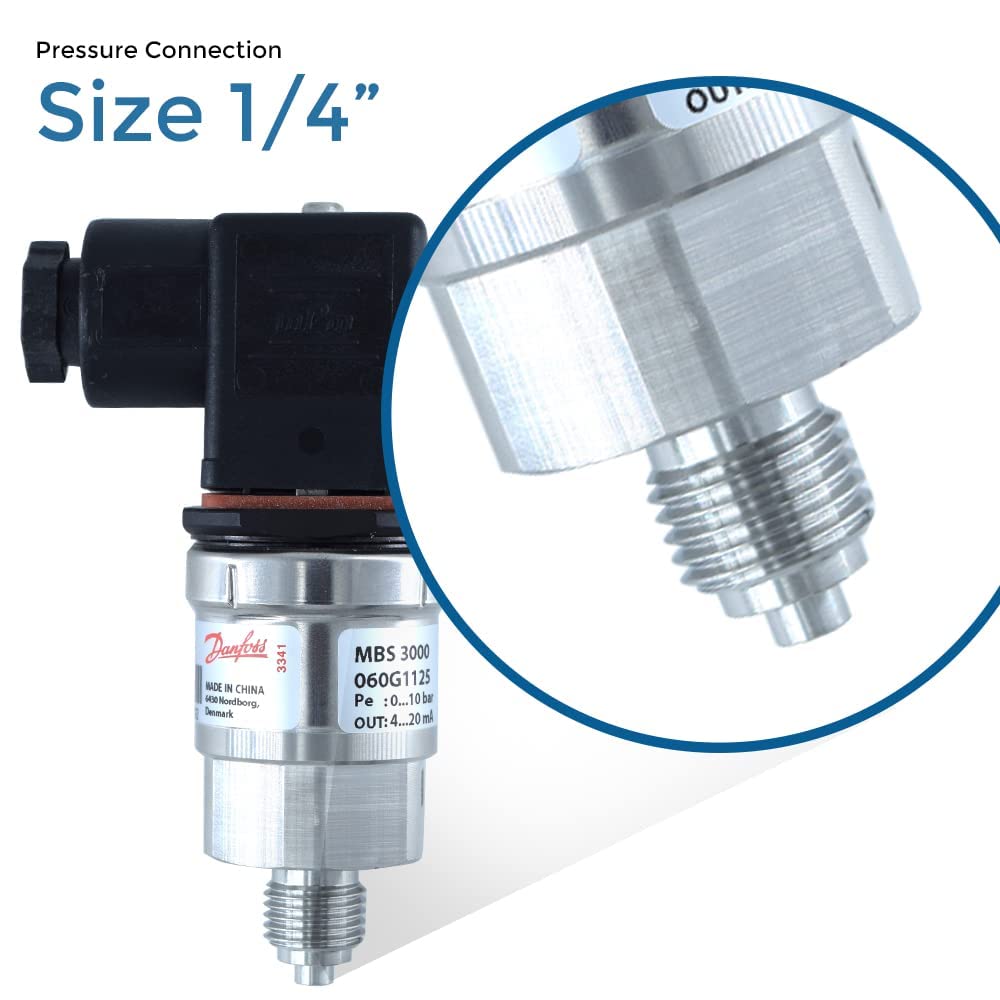

Measuring range 0 to 6 bar | Operating Temperature -40 °C to +85 °C | Accuracy (incl. non-linearity, hysteresis and repeatability) ≤ ± 0.5% FS (typ.) & ≤ ± 1% FS (max.) | Standard Output Signal 4-20 mA | Pressure Connection G 1/4

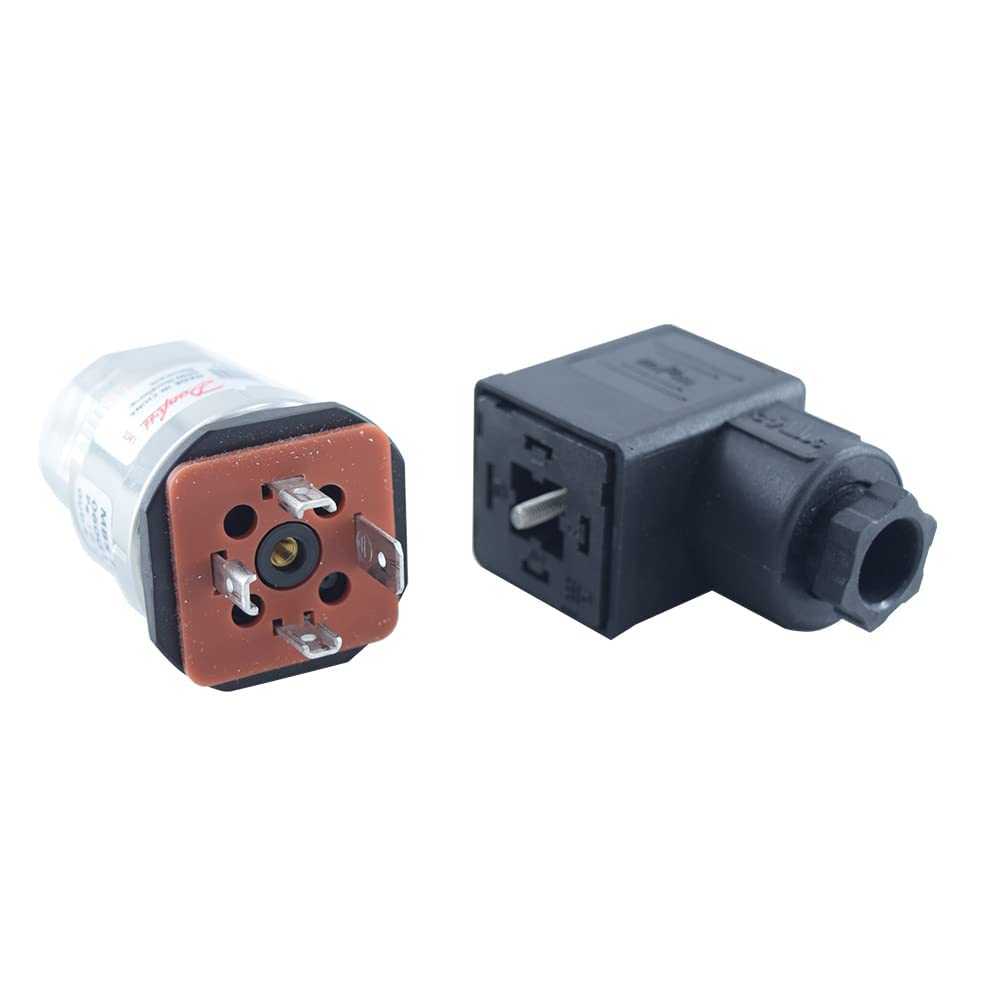

. Hysteresis and repeatability ≤ ± 0.1% FS | Thermal zero point shift ≤ ± 0.1% FS / 10K (typ.) & ≤ ± 0.2% FS / 10K (max.) | Response time < 4 ms | Overload pressure (static) 6 × FS (max. 1500 bar) | Electrical connection DIN plug

Burst pressure 6 × FS (max. 2000 bar) | Power-up time < 50 ms | Durability, P 10 – 90% FS >10 × 106 cycles | Sensor Operating temperature Normal -40 to 85 °C & ATEX Zone 2 -10 to 85 °C

Insulation resistance > 100 MΩ at 500 V DC | Enclosure IP65 | Net weight (depending on pressure connection and electrical connection) 0.2 – 0.3 kg | Temperature compensated and laser calibrated

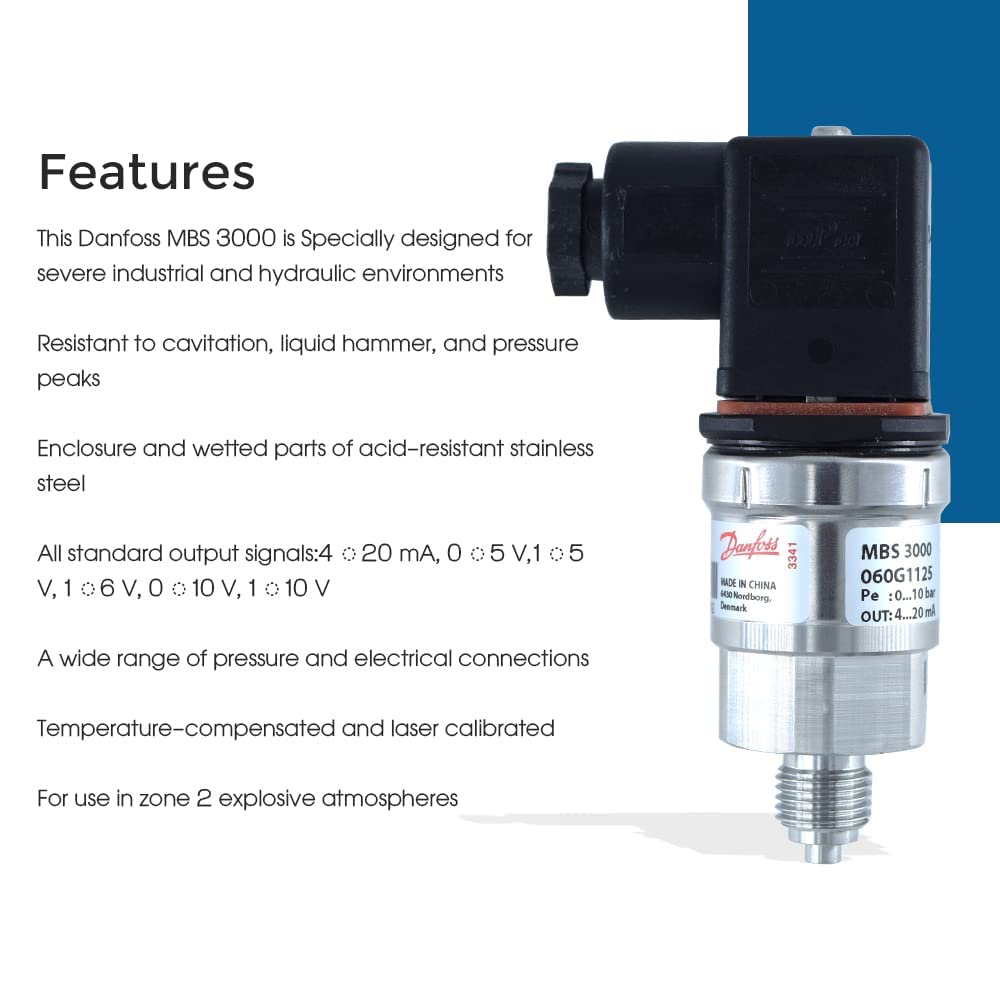

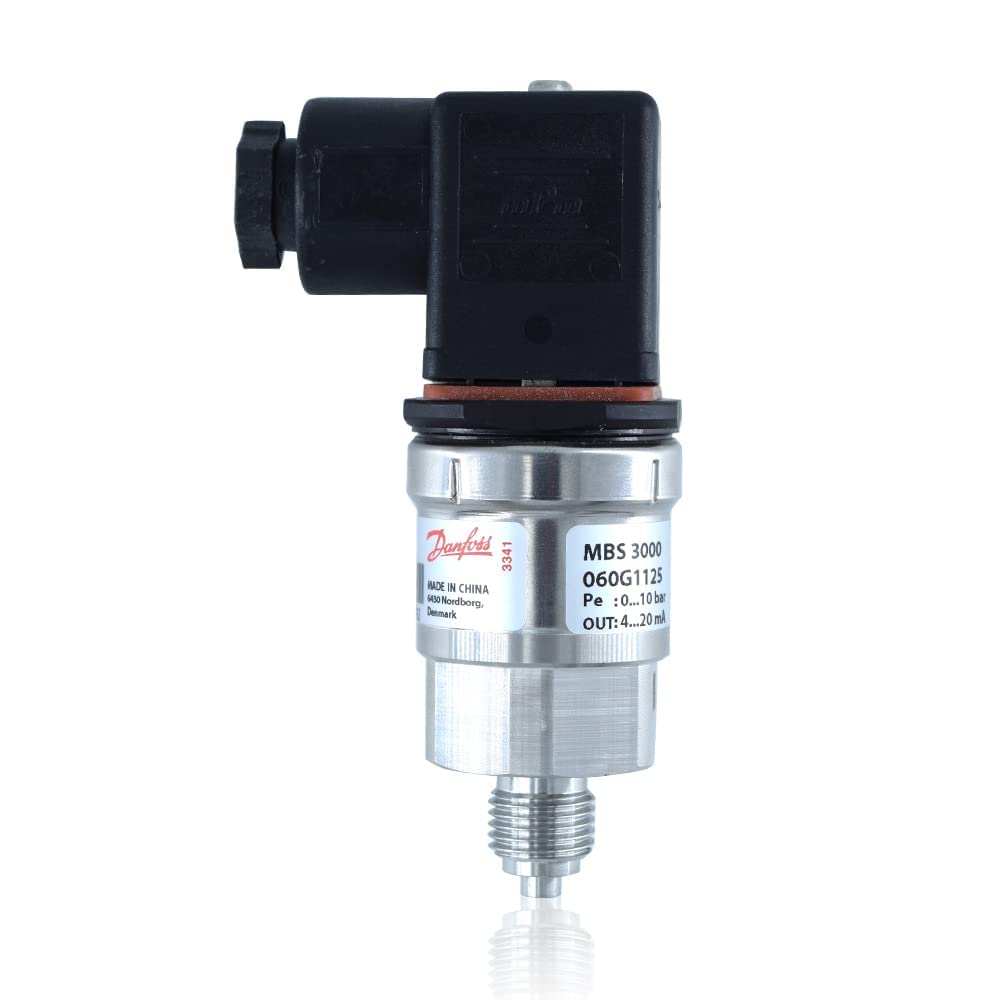

Supply Scope 1 unit of MBS3000 pressure transmitter and Instruction manual | Applications Pumps, Compressors, Pneumatics, Water treatment, Automobiles, Heavy Industries & HVAC.
