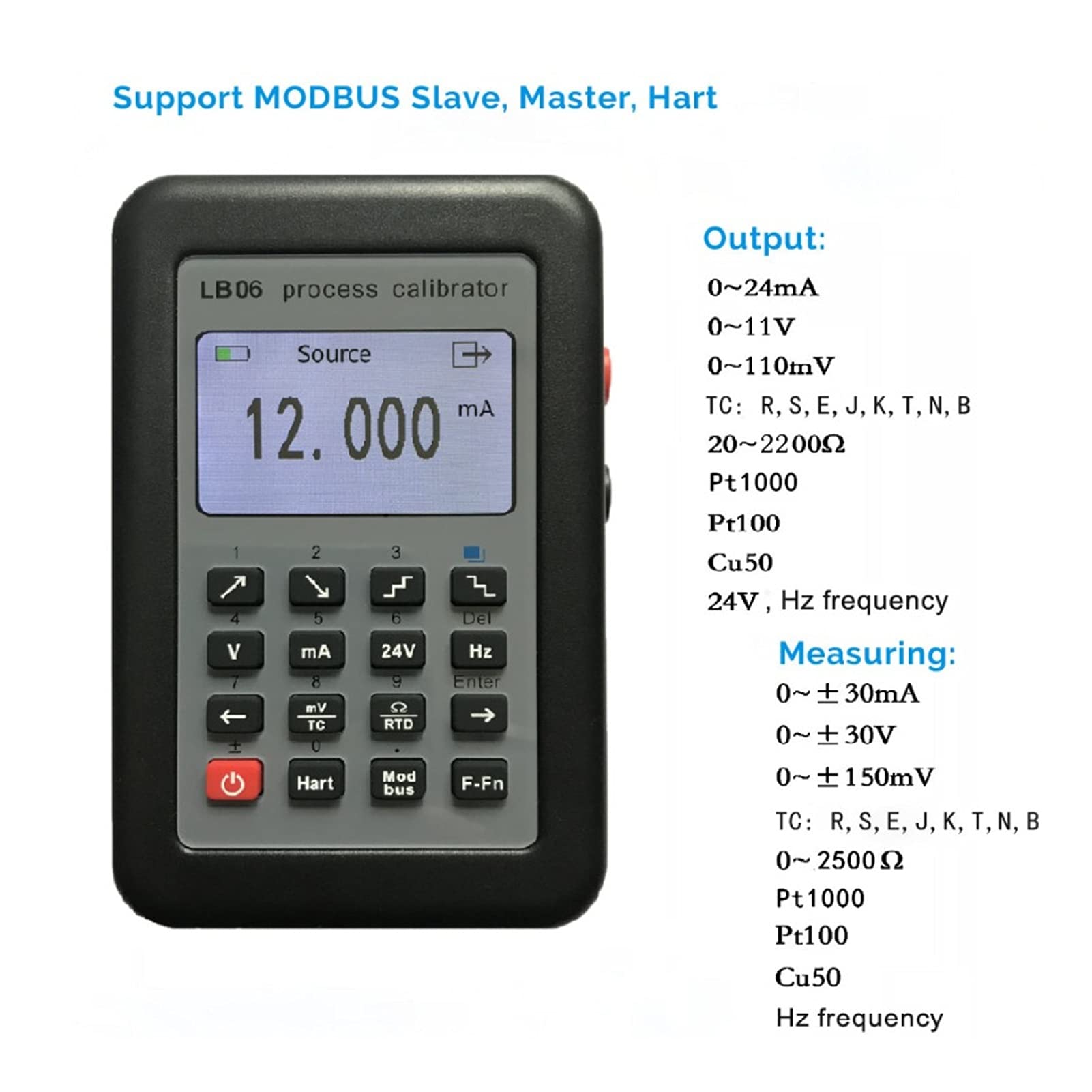

Main Features● High Precision 0.025%+1/2 digits, high reliability &stabilityinsignal simulation and measurement.● Pocket size: 120x76x30mm, put it into your pocket, save energy, save cost, user friendly design.● Output simulation: 0/4-20mA source/passive, 0-11V, 0-110mV, 20-400Ω, R, E, S, K, J, B, T, N type thermocouple, PT1000, PT100, CU50, 24V outputs, frequency, etc.● Measurement: 0-30V, 0-150mV, 0-999.9Ω, R, E, S, K, J, B, T, N type thermocouple, PT100, Pt1000 CU50, 24V, 0-24mA, Ohm, frequency, etc. ● Have standard MODBUS Master, MODBUS Slave, Hart communicator/operator function.● Signal generator, multifunction process calibrator and digital multimeter all-in-one.● Have description in V, mV, mA, RTD, TC, Step, Ω, Hz, MODBUS, Hart keys, use it easily.● High resolution LCD display, have back light for different lighting conditions, large screen clear display.● Fast response, no delay in signal source simulation and signal testing or measurement.● Have battery capacity bar to check the battery status easily.● Precision AD, DA, reference voltage, OP circuits are used to ensure high accuracy, high performance and high stability.● Have 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.Packing contents:1 Unit x Original BRT LB06 Portable Precision Process Calibrator1 Set x High safety standards testing Pen Probe1 Unit x High quality 2A USB Cable for Battery Re-charge1 Unit x High quality meter bag1 Set x Professional Brightwin Easy-to-understand User ManualMeasurement ParametersOutput ParametersTesting ShowmV Signal Operation Example
