Intelligent Liquid Level Sensor Detector - 316L Stainless Steel, 4-20mA Output, 24-32VDC Power, 65.6ft Cable - Perfect for Industrial Tank Monitoring, Water Treatment, and Chemical Processing Systems

$48.95

$89

Safe 45%

Intelligent Liquid Level Sensor Detector - 316L Stainless Steel, 4-20mA Output, 24-32VDC Power, 65.6ft Cable - Perfect for Industrial Tank Monitoring, Water Treatment, and Chemical Processing Systems

Intelligent Liquid Level Sensor Detector - 316L Stainless Steel, 4-20mA Output, 24-32VDC Power, 65.6ft Cable - Perfect for Industrial Tank Monitoring, Water Treatment, and Chemical Processing Systems

$48.95

$89

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

15 people viewing this product right now!

SKU: 96327481

Guranteed safe checkout

Description

PreAsion 24-32V DC Water Level Sensor Detector Liquid Level Transmitter Water Level Sensor 4-20mA Signal Output Float Switch 4-20mA Signal Output 1, measuring range: 0-100m, 2. Accuracy: 0.5% F.S 3. Load: 100kpa) Full scale Temperature drift: 0.03% FS / C (≤100KPA) 0.02% FS / C (> 100kpa) 8, the working voltage: 12-30VDC Main Feature: 20m Cable The shell is made of 304 stainless steel the inner core is 316 stainless steel Voltage:24-32V 4-20mA Signal Output Input sensor It can be soaked in water for a long time Hydrostatic level transmitter liquid level sensor is determined by measuring the static pressure generated by the level.Hydrostatic pressure using the formula P = Po +pgh, where: Po is the atmospheric pressure above the liquid level,p is the measured liquid density, H is the height of the liquid, g is the gravitational acceleration (constant). When Po remains constant, the pressure depends on the density and level two variables. When the liquid density is constant, the level will vary linearly with pressure. The pressure in the pressure-sensitive surface of the transmitter diffusion silicon pressure sensors, piezoresistive effect by the sensor, the column pressure into a voltage signal. This signal is amplified directly converted into 4 ~ 20mA.If an upper level atmospheric pressure changes, the pressure sensor will be the same as the level changes affect. WRT-136 uses a macaroni ventilation cable design methodology, the external atmospheric pressure introduced into the other side of the pressure sensitive sensor surface. By the atmospheric pressure thus eliminating

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

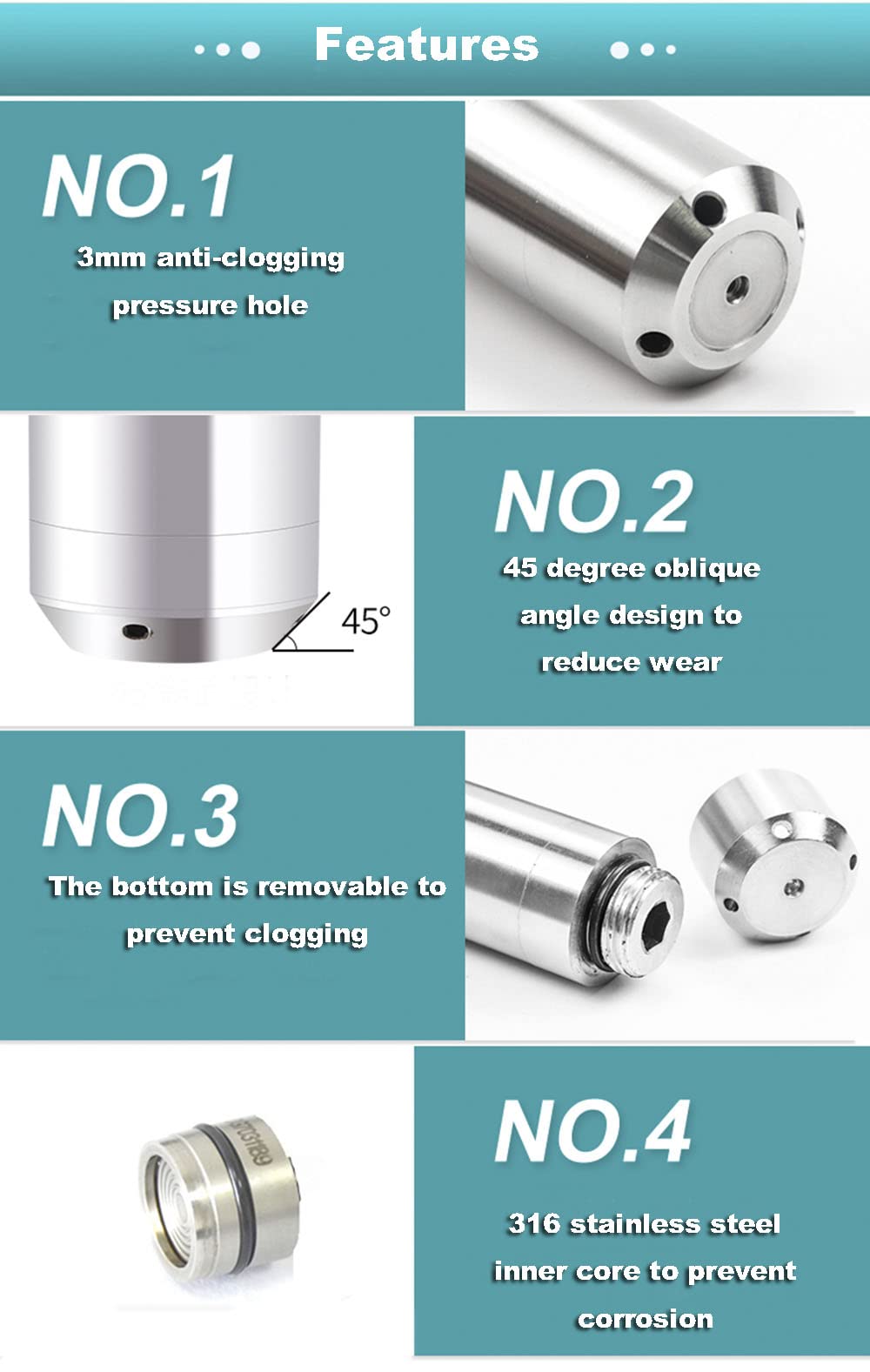

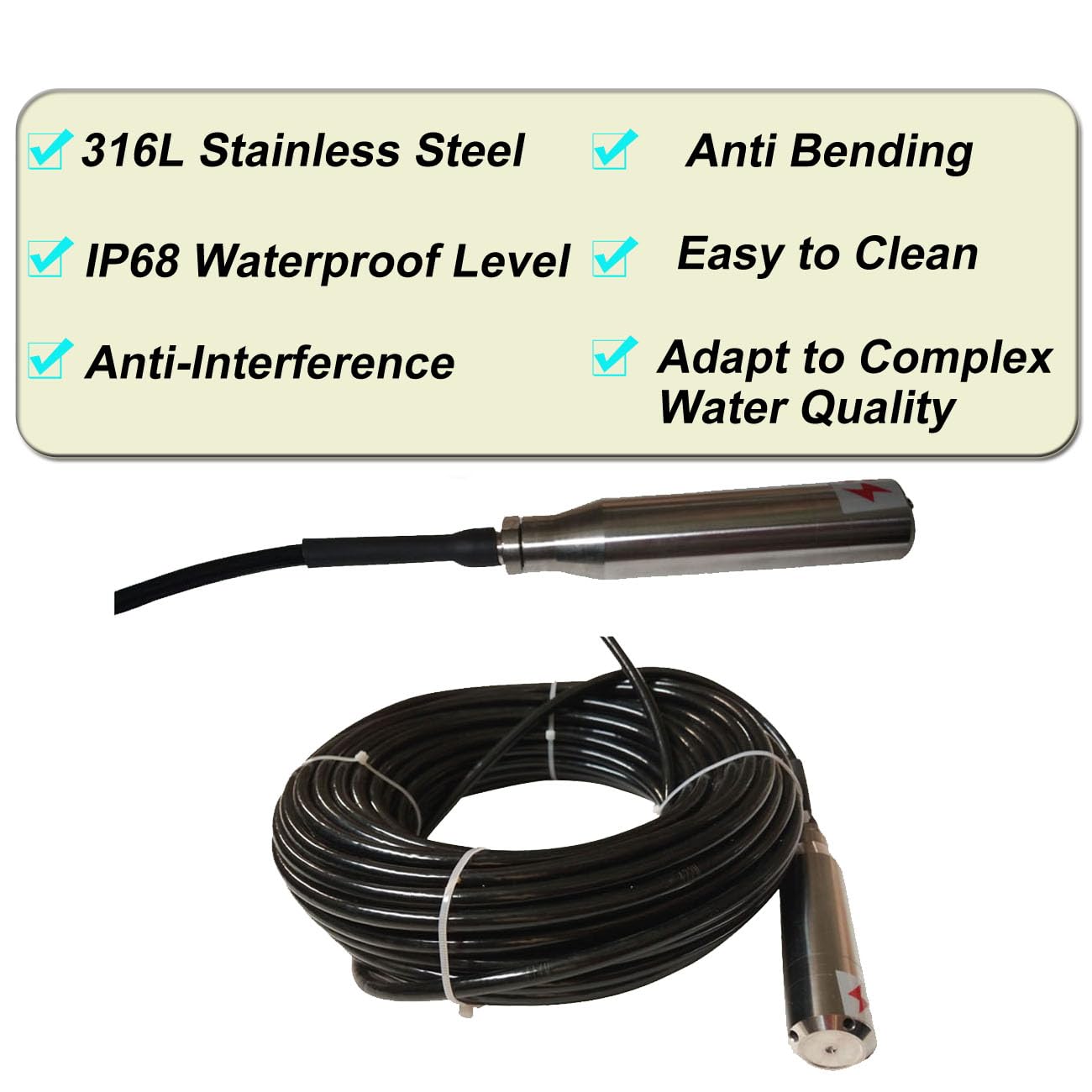

WaterProof Design The probe of this liquid level gauge has undergone special welding waterproofing treatment and is waterproof to IP68 level. The shell is made of 316L stainless steel, which has the advantages of being sturdy, durable, impermeable, and anti-interference. The length of the waterproof cable is 65.6', which can accommodate the depth requirements of most water tanks and pools.

Excellent Performance The water level detector can adapt to both high and low temperature environments. The operating temperature is 0-70 °C, and the compensation temperature range is 0-60 °C. In addition, the accuracy of the water level detector is very high. The accuracy is ± 0.5% FS. And it has good tolerance and strong overload capacity, which is twice the full scale pressure. Load Resistance less than (U-10)/ 0.02Ω.

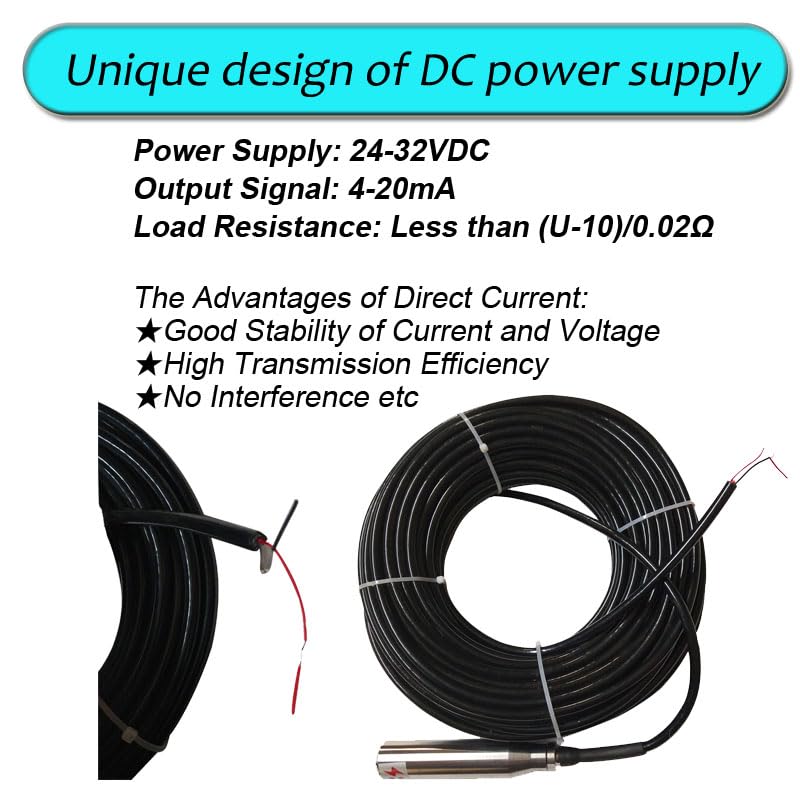

Direct Current The power supply for the water tank level gauge is 24-32VDC, output Signal is 4-20mA. Please pay attention to direct current when using.

Stable and Reliable The probe of the water level gauge is resistant to bending, capable of working in complex terrain and water bodies, resistant to water flow vibration, and easy to clean. To maintain good performance, please do not disassemble the probe and diaphragm.

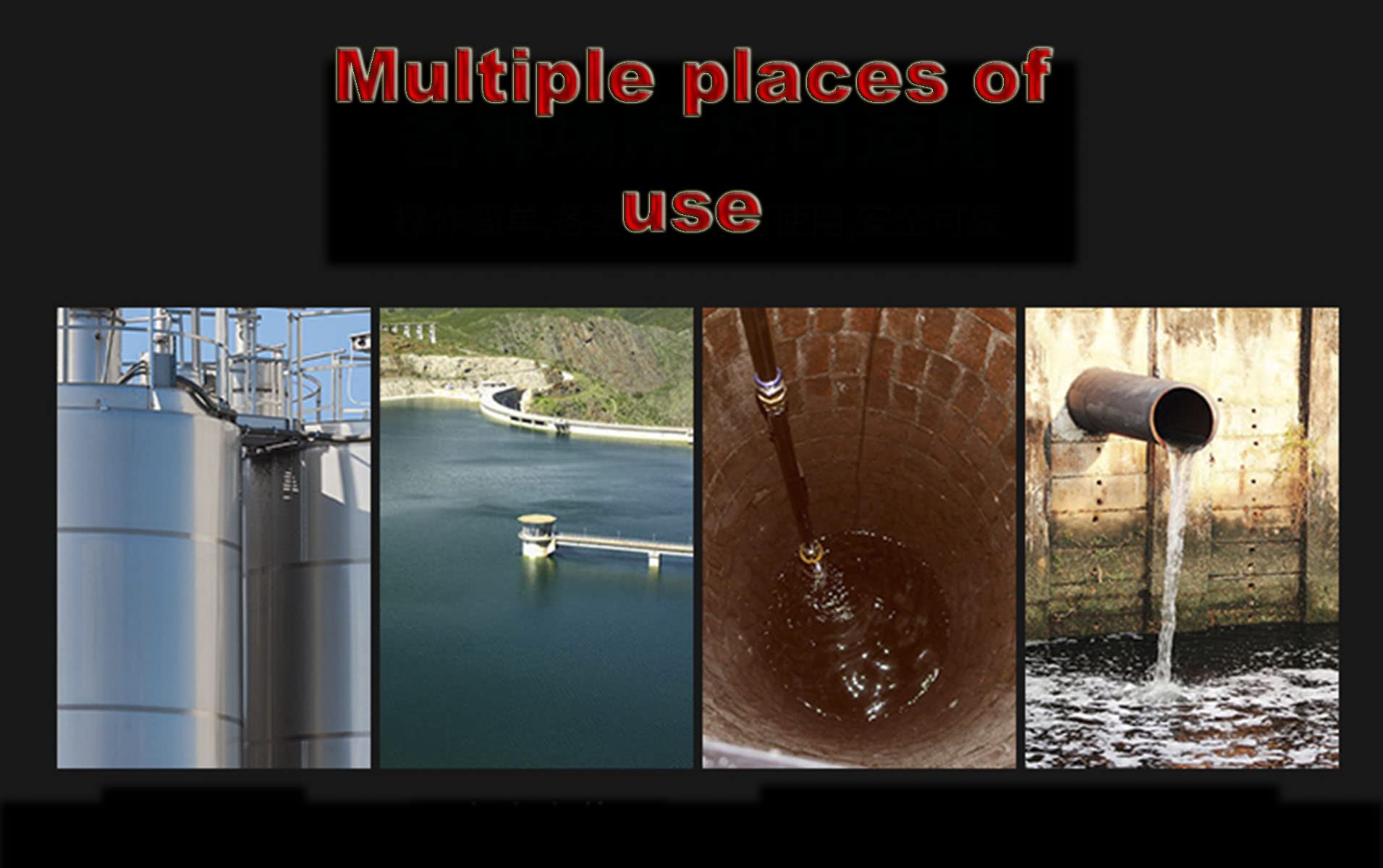

Widely Application Due to Intelligent liquid level sensor has small size, light weight, and excellent performance, intelligent liquid level meters are widely used in fire water tanks, engineering water tanks, water tower deep wells, lake water tanks, and other occasions.
