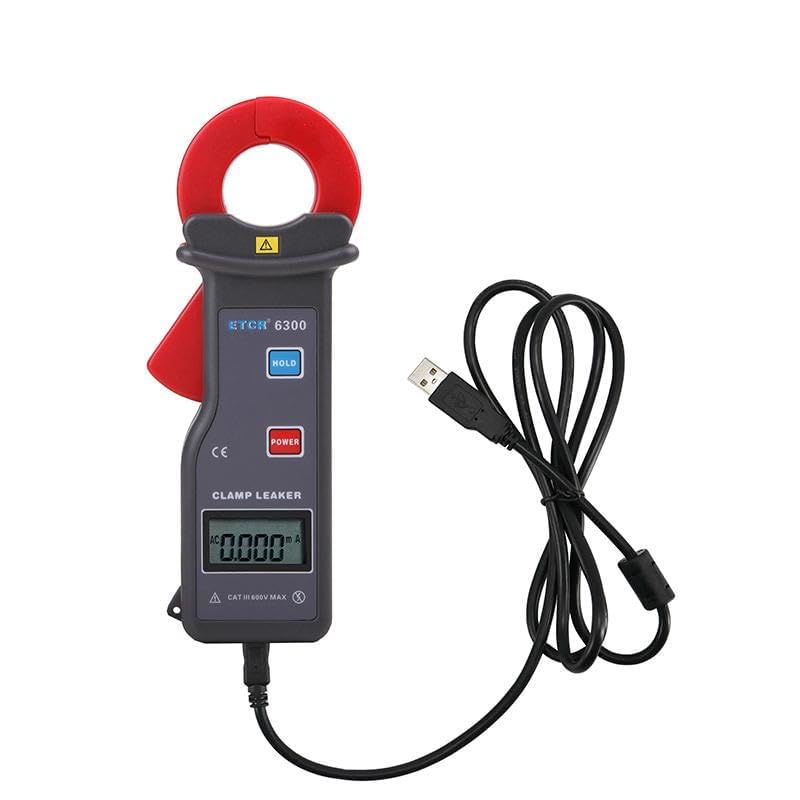

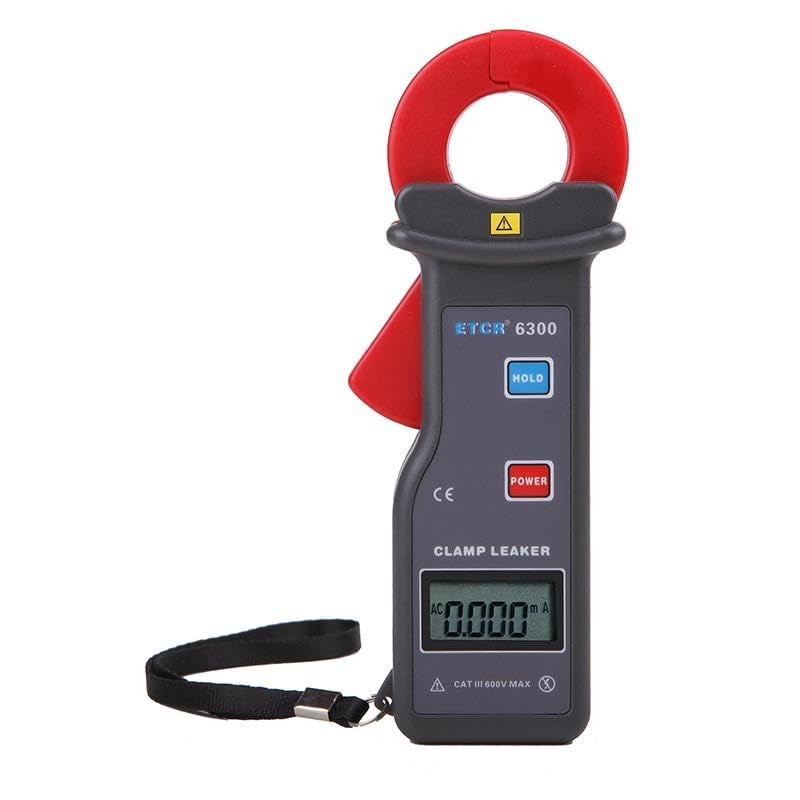

ETCR6300 Digital Clamp Meter - High Accuracy AC Current Tester (0.000mA-60.00A) with LCD Display, 0.001mA Resolution, 25×30mm Clamp & USB Interface - Perfect for HVAC, Electrical Maintenance and Industrial Current Measurement

$46.75

$85

Safe 45%

ETCR6300 Digital Clamp Meter - High Accuracy AC Current Tester (0.000mA-60.00A) with LCD Display, 0.001mA Resolution, 25×30mm Clamp & USB Interface - Perfect for HVAC, Electrical Maintenance and Industrial Current Measurement

$46.75

$85

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

6 people viewing this product right now!

SKU: 97072200

Guranteed safe checkout

Description

*Function AC leakage measurement, AC current measurement, On-line AC current measurement *Power Supply 6F22,9V *Process Type Clamp CT, Integral Approach *Display Type 4 Digits LCD *Clamp Size 25mm×30mm *Meter Dimension LWH: 175mm×70mm×38mm *LCD Dimension 35mm×21.5mm; Display Dimension: 32mm×15mm *Sampling Rate 2 Times/Second *Frequency 50Hz, 60Hz Automatic identification *Shifting Automatic Shift *Range 0.000mA~60.00A *Resolution 1uA *Accuracy ±1.5%±5dgt (23℃±3℃, below 70%RH) *Line voltage Below AC 600V *USB Interface, Data stored in the memory can be uploaded to the computer, with software monitoring *Data Memory 99 sets, “FULL” Blinking when memory is full *Peak Maintaining Peak value capture hold function, press HOLD without Release to display peak value *Reading Hold Reading hold function: “DH” symbol display *Overflow display Range overflow function: “OL” symbol display *Automatic Shutdown 5 minutes after the boot *Battery Detection When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. *Meter Weight 120g (With battery) *Rated Power 5mW *Working Temperature and Humidity 0℃~40℃; below 80%rh *Storage Temperature and Humidity -10℃~60℃; below 70%rh *Insulation Strength AC2kV/rms (between core and box) *Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) *Accessories Meter: 1 piece, USB cable:1 piece; Software Disk: 1 piece; Battery (6LR61 9V): 1 piece

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

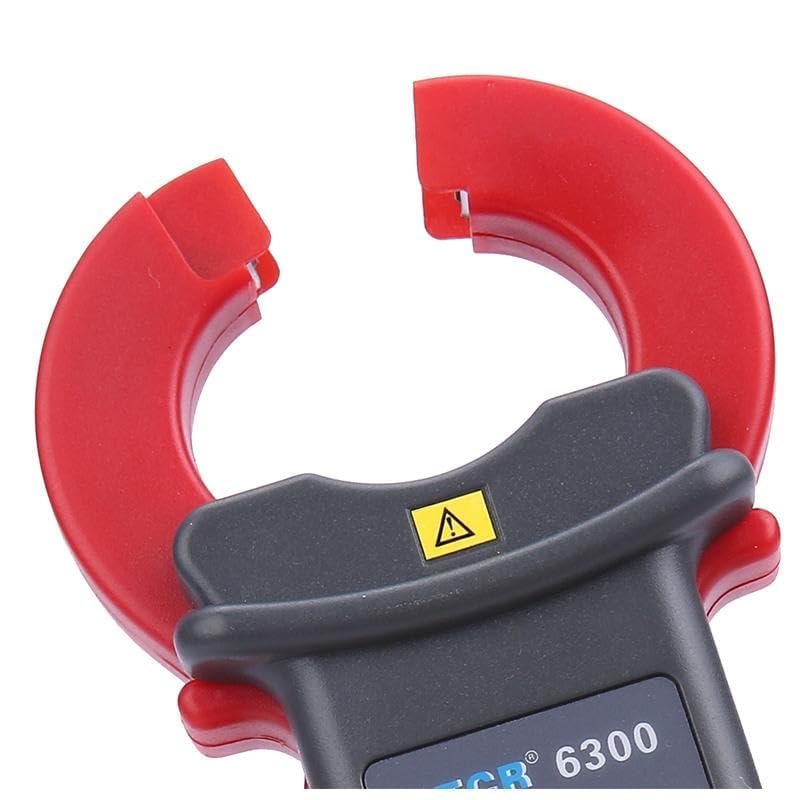

ETCR6300 Clamp Leakage Current Meter is suitable for measuring AC current and leakage current below 600V, range 0.000mA~60.0A, CT size 25mm x 30mm, the iron core adopts magnetic shielding technology, almost unaffected by the external magnetic field, strong anti-interference ability.

ETCR6300 Clamp Leakage Current Meter is especially suitable for high accuracy small current measurement, adopt non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance.

ETCR6300 Clamp Leakage Current Meter, with data hold, data storage and other functions, can store 99 groups of data, the instrument can be connected with computer by interface, and stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.
