**ennoLogic eC370T Volt mA Thermocouple Loop Process Calibrator – 0-20V & 4-20mA Signal Generator, Meter & Simulator for Transmitters, PLCs, Current Loops – Ideal for Industrial Automation & HVAC Testing**

$208.97

$379.95

Safe 45%

**ennoLogic eC370T Volt mA Thermocouple Loop Process Calibrator – 0-20V & 4-20mA Signal Generator, Meter & Simulator for Transmitters, PLCs, Current Loops – Ideal for Industrial Automation & HVAC Testing**

$208.97

$379.95

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

13 people viewing this product right now!

SKU: 98609883

Guranteed safe checkout

Description

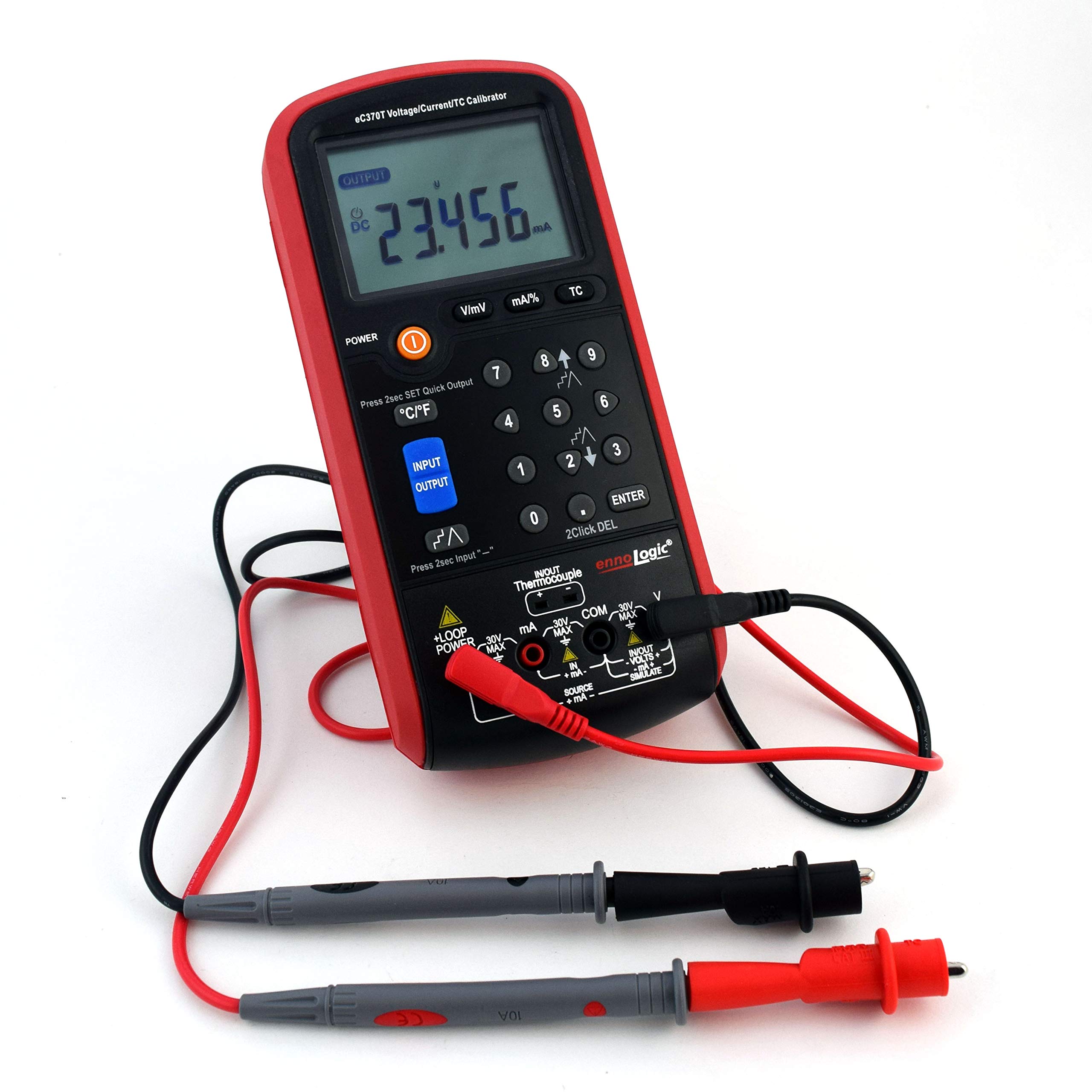

Test, verify, service and repair transmitters, sensors transducers, thermocouples, controllers, panel meters, recorders and other instruments in the lab or field. Calibrate process devices, or use the eC370T calibrator for research and development of electronics instruments. Perfect test tool wherever an accurate voltage, current or thermocouple temperature reference signal generator is needed.The ennoLogic Volt/mA/TC calibrator can generate precise DC voltages (0-20V) or DC milliamp currents (0-24 mA) for calibration and testing of devices and instruments. It is also able to measure and simulate thermocouples of type K, J, E, T, N, S, R, and B. Please note that it cannot be used to measure and source signals simultaneously, but it does include a 24V loop power supply to simultaneously power and measure 4-20mA transmitters.The eC370T is powered by 6 AAA batteries (included) or an optional external 12VDC/2A power supply (not included). It comes with a carrying case, high-quality test leads and alligator clips, Type K thermocouple probe, K-Type thermocouple connector, Mini-USB cable and a detailed user manual. Specifications - Voltage measurement and output: ranges 0-100mV and 0-20V, resolution 0.01mV and 1mV respectively, accuracy 0.06%+4counts for 100mV range, - Current measurement and output: range: 0 to 24 mA, resolution 0.001mA, accuracy -Temperature measurement and output: -250°C to +1800°C, resolution of ±0.7°C to ±2°C -Supported thermocouples types: K, J, E, T, N, S, R, B -Loop power: 24V+/- 10% -Power: 6x 1.5V AAA (included). Auto-power-off. Optional 12VDC/2A AC adapter can be used as well (not included) -Size: 8” x 3.9” x 1.8” -Weight: 465g/16oz incl. batteries

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

VERSATILE AND ACCURATE VOLT MA THERMOCOUPLE CALIBRATOR Signal generator, simulator and volt / mA meter for calibrating, testing and repairing milliamp loops, thermocouples, PLC, temperature control and HVAC systems. Easily generate precise test signals for current and voltage devices (mA, mV, V, Celsius and Fahrenheit ranges).

NUMERIC KEYPAD for ease and flexibility in setting output signals configuring options. HOTKEY programming for each numeric key (long-press immediately outputs user-configured voltage, current or temperature signal). RAMP AND LADDER OUTPUT FUNCTIONS can be custom configured. BUILT-IN 24V LOOP SUPPLY lets you power and read a device or transmitter without needing another multimeter. This greatly simplifies testing 2-wire current loops.

MEASURE VOLTAGE OUTPUT SIGNALS from process devices and sensors with two input ranges of 0-100mV (0.01mV resolution, 0.06% accuracy) and 0-20V (1mV resolution, 0.08% accuracy). MEASURE CURRENT TRANSMITTERS within a range of 0 to 24mA with 0.001mA resolution and 0.08% accuracy. MEASURE THERMOCOUPLE TEMPERATURES within a range of -250°C to +1800°C and resolution of ±0.7°C to ±2°C (range and resolution depends on thermocouple type, supported are type K, J, E, T, N, S, R, and B.)

GENERATE PRECISE TEST VOLTAGES, CURRENTS AND SIMIULATED THERMOCOUPLE TEMPERATURE SIGNALS for testing loops, transmitters, data loggers, meters or any devices that measure 4-20mA currents, sensor voltages, or temperatures. Generate voltages in two ranges 0-100mV (0.01mV resolution) and 0-20V (1mV resolution). Generate currents within a range of 0 to 24mA (0.001mA resolution). Generate thermocouple temperature signals within a range of -250°C to +1800°C (for types K, J, E, T, N, S, R, and B).

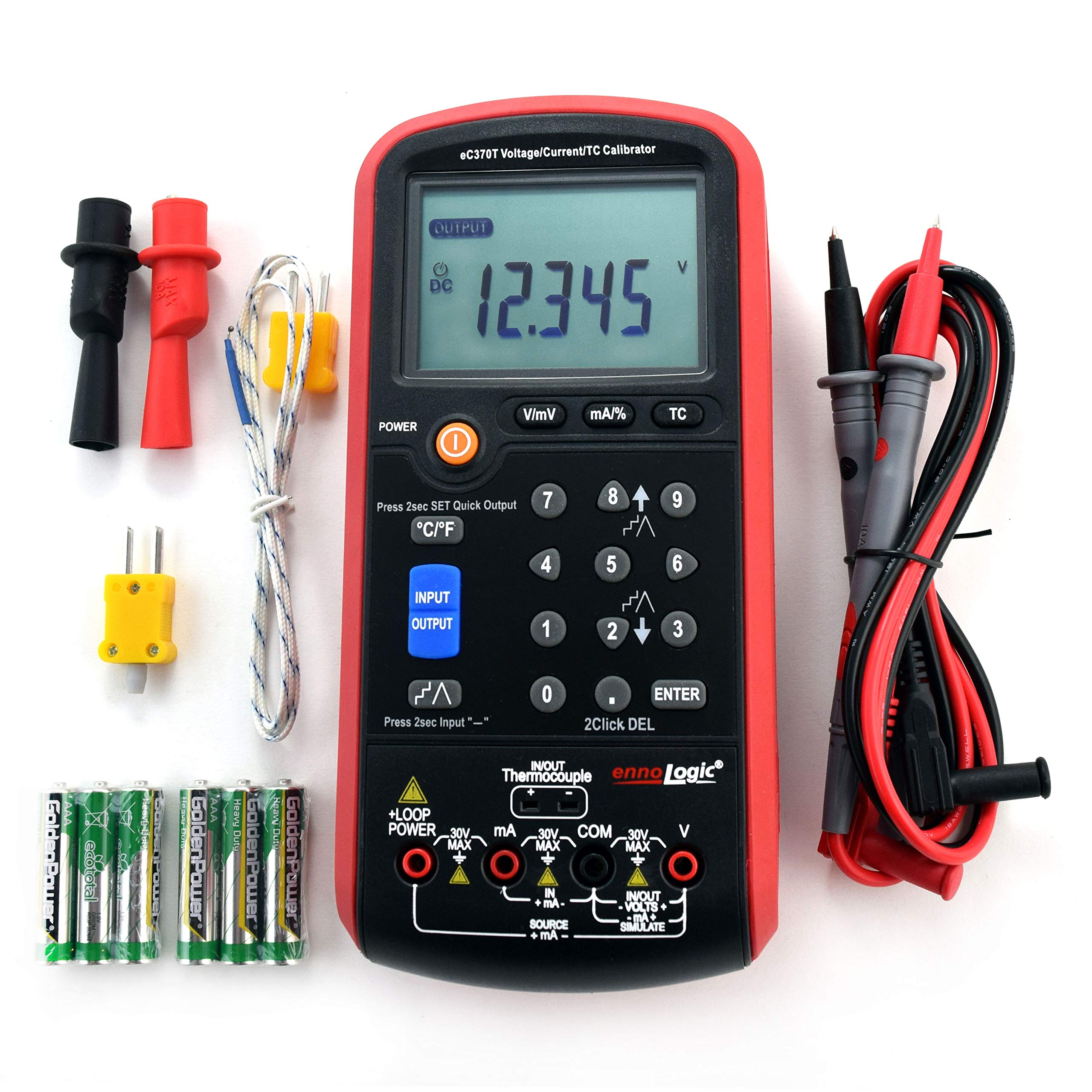

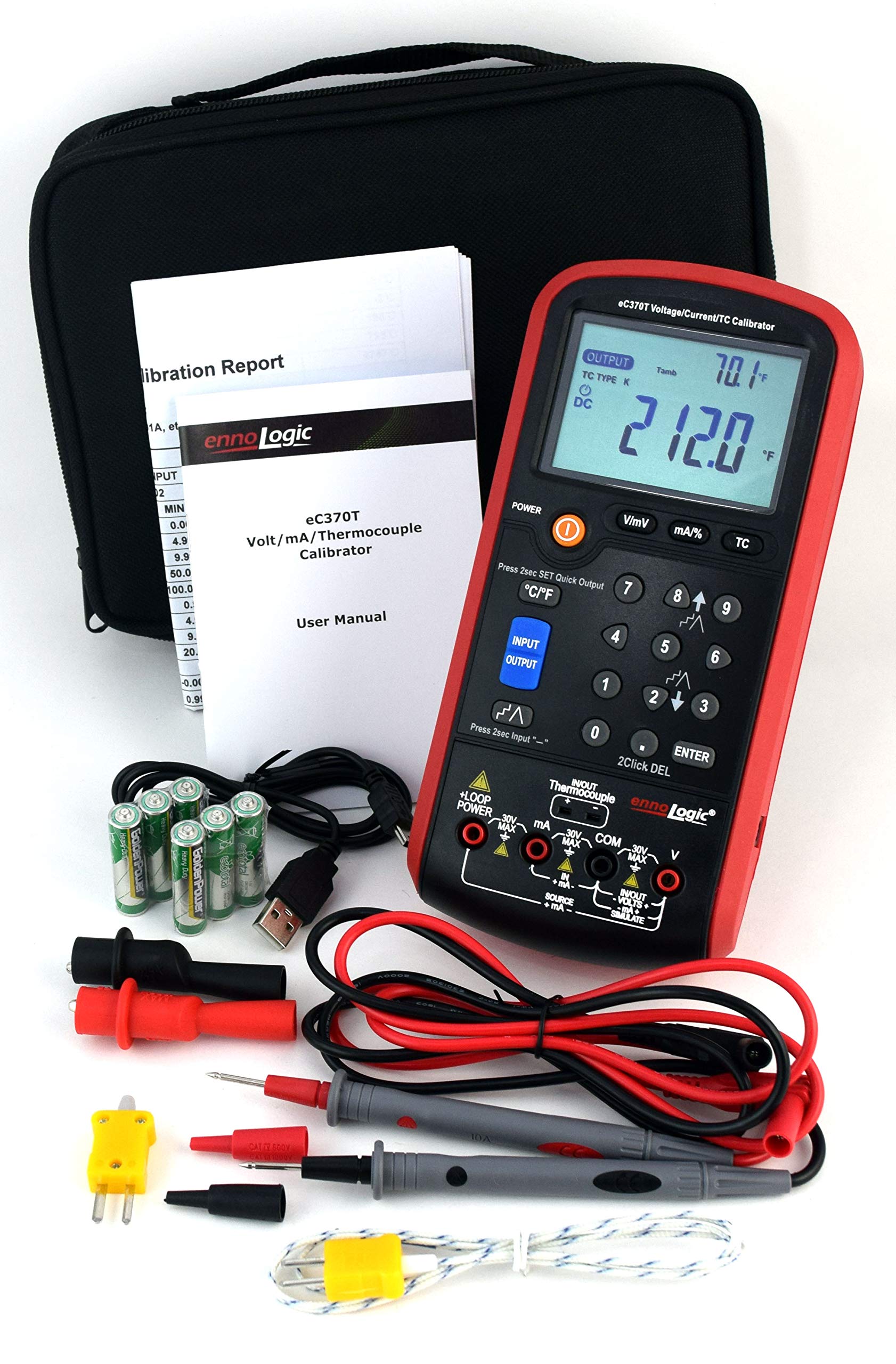

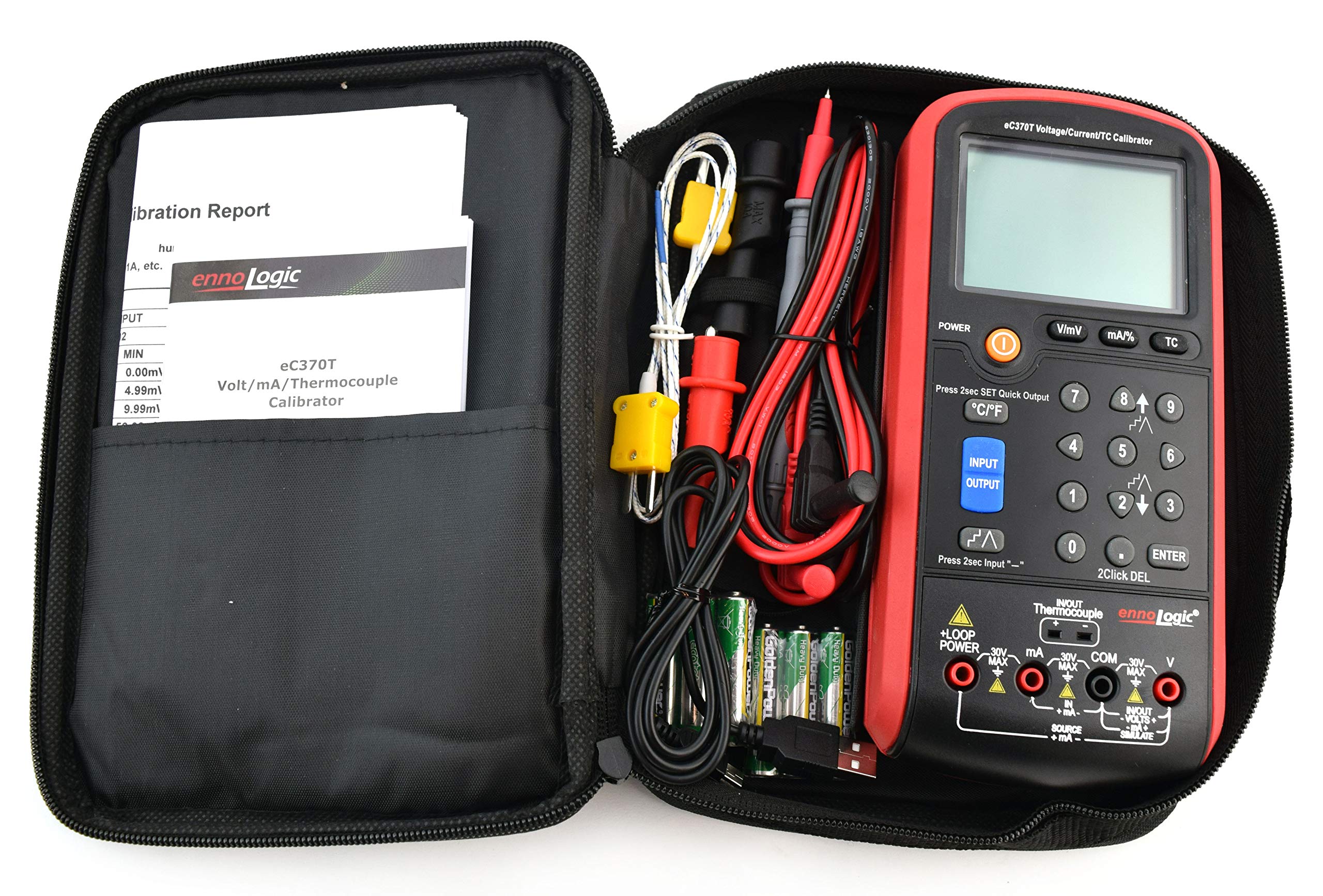

The eC370T Volt/mA/TC calibrator is powered by six AAA batteries (included). A windows-based software tool is available for download to control the calibrator with a computer via USB cable. The package includes one eC370T calibrator, 6 AAA batteries, carrying case, test leads, alligator clip adaptors for test leads, Type K thermocouple probe, K-Type thermocouple connector, Mini-USB cable and a detailed user manual.
